The best heating system a house can have is the one you don’t realize is there. No radiators clanking in the night. No vents whooshing like a jet preparing for takeoff. No dust-spewing ductwork to run up your allergists’ bills. Just an even blanket of heat, right where you want it.
This Old House plumbing and heating expert Richard Trethewey helps guide you through two types of heated floors in terms of cost, installation, and energy efficiency to select the right one for your house.
How well does radiant floor heat work?
That’s the appeal of radiant floor heating, says This Old House plumbing and heating expert Richard Trethewey, who has long been a fan. “It’s truly invisible,” he says. But a radiant heat system has more than just aesthetics going for it. It’s also a highly efficient way to heat a house, increasing comfort as it reduces energy costs.
In a radiant setup, the warmth is supplied by hot-water tubes or electric wires buried underneath the floor. As the invisible waves of thermal radiation rise from below, they warm up any objects they strike, which radiate that captured heat in turn. Though the air temperature remains relatively constant, you stay comfortable because the surrounding surfaces aren’t stealing warmth from your body.
How does it differ from conventional heating?
Contrast that with what happens in a conventional forced-air heating system, the kind found in most American homes. Air blows out of the registers at a well-baked 120 degrees, rises to the top of the room where it quickly sheds heat, then drops back down as it cools.
The air in the room becomes uncomfortably stratified: Your head can be bathed in warmth while your toes lie in the frozen zone. Then there’s the problem of cycling. “You turn on the furnace, it quickly takes you to 68 or 70, and then shuts off,” says Richard. The result is a phenomenon he calls “the cold 70,” which is what you feel right after the hot air stops pumping from the registers.
Those jarring ups and downs are absent with radiant floors, which may reach 85 degrees, tops, on a frigid day. The warm air still rises, but it does so evenly over the entire floor, so the coolest air stays up at the ceiling.
Two Types of Heated Floors: Hydronic and Electric

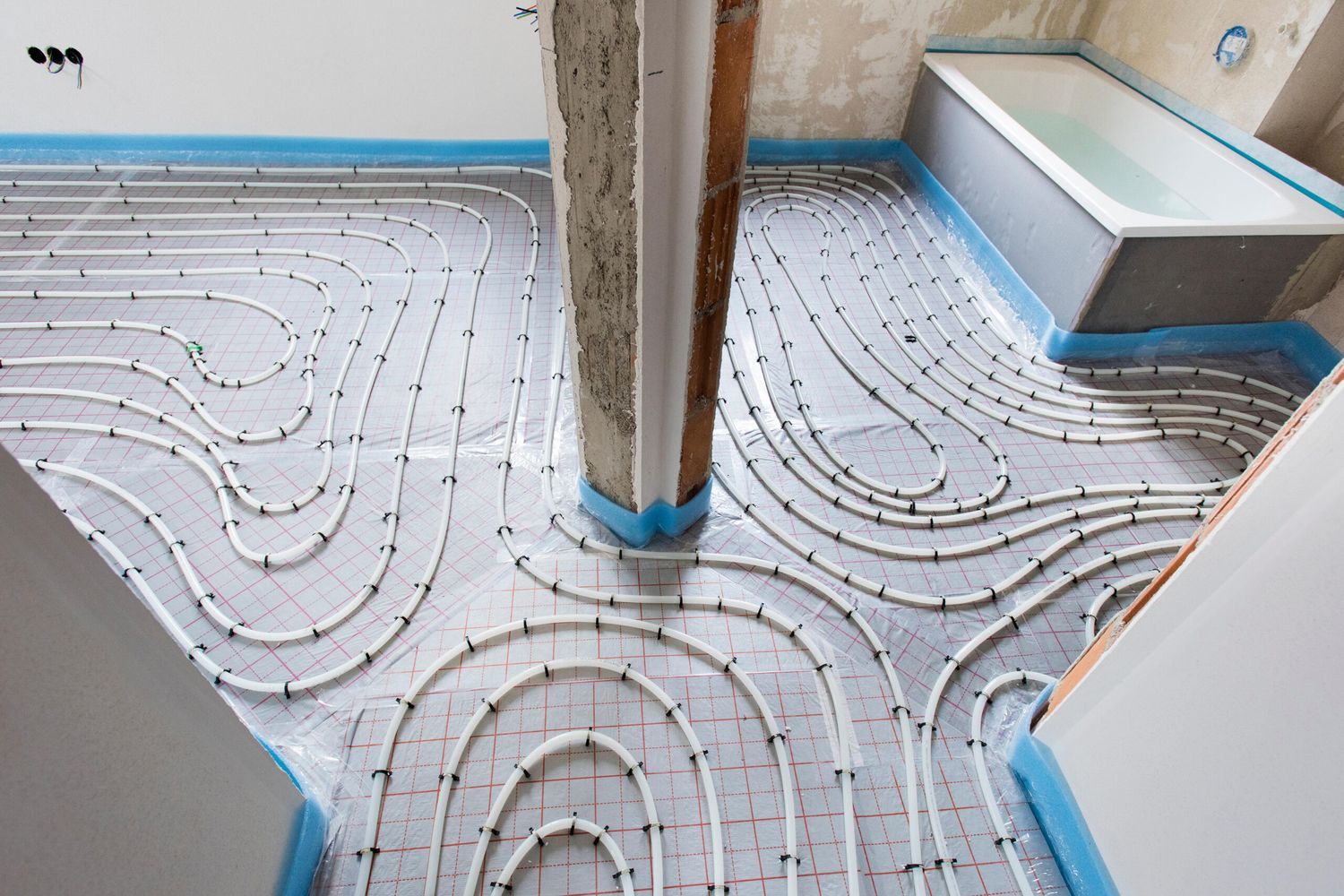

There are two basic types of radiant floor heating that supply this gentle, even warmth: hot water or electricity. Electric radiant, which uses zigzagging loops of resistance wire, is generally retrofitted to a single room, such as a bathroom or kitchen. Hot-water “hydronic” systems—the most popular and cost effective way to heat an entire house—circulate water from a boiler or water heater through loops of 1/2-inch polyethylene tubing.
The flexible tubes can be installed in a variety of ways: on top of the subfloor in grooved panels or snap-in grids; clipped into aluminum strips on the underside of the floor; or embedded in poured concrete. Once the system is in place, you can cover it with most types of finish flooring, including hardwood and tile.
Carpet, however, can be tricky, especially if it has thick padding underneath. “If the floor is too well insulated, radiant heating really doesn’t make sense,” Richard says. “It’s like putting a sweater over a radiator.”
Hot-water radiant costs more to install than other types of heating systems—from $6 to $15 per square foot depending on the method, whether you’re starting from scratch or retrofitting, and where you live. (New builds where the tubes are buried in concrete slab tend to be the least expensive). And you’ll still need a separate air-conditioning system for cooling.
But if the price tag puts you off, consider this: Once it’s up and running, a radiant heat system can be up to 30 percent more energy efficient than forced-air heating, depending on how well insulated a house is. And there’s no comparison when it comes to comfort. In that category, radiant always wins, feet down.
Hydronic Radiant Floor Heating
What It Is
An energy efficient home heating system that turns entire floors into radiators, warming living spaces without uncomfortable hot or cold air pockets.
How It Works
Heated water is pumped from a boiler through a loop of flexible tubing embedded in the floor.
Why You’d Want One
Eliminates forever the discomfort of cold floors as it slashes energy bills.
What To Look For
Multiple heating zones: Makes it easy to fine-tune the amount of heat being delivered to different rooms.
Outdoor Reset Control
Slowly raises and lowers the amount of hot water flowing through the tubing in response to changing outside temperatures.
Pex Tubing
Specially treated polyethylene carries the hot water for hydronic systems. Unlike copper, this inert plastic won’t corrode and can be installed in long runs with just a couple of fittings, reducing the chance of leaks.
What It Costs
$6 to $15 a square foot for installation. In general, expect to pay 50 percent more for a hydronic radiant flooring system than for conventional forced-air heat.
Where To Get It
No one manufacturer supplies all the components for hydronic radiant heating. You’ll need a good heating contractor to put a system together. With electric radiant, it’s easy to find turnkey systems.
Electric Radiant Floor Heating
For an alternative to the cost and complication of a hydronic system, there’s electric radiant heat. Its warmth comes from a loop of thin electric wire laid directly under the finish floor. No boiler, no water, no 1/2-inch-thick tubing to alter the floor’s height.
You’ll need an electrician to connect the wiring to the panel, but the rest of the installation is no more difficult than laying tile. The catch lurks in your utility bill: the 6 to 10 watts per square foot the system uses per hour makes it prohibitively expensive to heat a whole house. It’s best for spot heating, such as taking the chill off a tiled bathroom or stone countertop.
Radiant Floors: A Quick Historical Recap
Radiant heat dates to ancient times, when the Romans warmed rooms by running the flues for slave-tended, wood-burning fires under elevated marble floors, keeping toes and togas nice and toasty.
Many centuries later, in this country, Frank Lloyd Wright buried copper pipes in the concrete floors of his Usonian homes and warmed them with hot water. A few postwar subdivisions, including Levittown, followed suit. But when the pipes eventually corroded, most homeowners abandoned radiant rather than jackhammer their floors.
Today, plastic PEX tubing has replaced metal as the favored means of feeding hydronic heat into floors, making radiant heat systems more affordable than ever. And with a no-fail track record in Europe going back more than 35 years, it’s also made them more reliable.
Resources
Hydronic radiant-heat controls and parts:
Uponor Corporation
Apple Valley, MN
800-321-4739
uponor.us
Electric radiant mats:
Thermosoft International Corp.
Vernon Hills, IL
800-308-8057
thermosoft.com
Warmly Yours
Lake Zurich, IL
800-875-5258
warmlyyours.com
Speedheat US
Woodstock, Georgia
888-WARM FLOOR
https://www.speedheating.com/
SunTouch
Springfield, MO
888-432-8932
suntouch.com
800-660-7187
