You're in the shower, doing your best imitation of a Top-40 pop star. Suddenly that warm, relaxing shower turns too hot to handle, causing you to jump back to avoid the scorching water. The cause? Someone in the house has flushed a toilet. If the situation sounds familiar, then you need to install a pressure-balance valve in your shower.

These pressure-balancing devices prevent "shower shock" by automatically adjusting for temperature fluctuations whenever water?cold or hot?is diverted from the tub or shower, such as when someone starts up a load of laundry or flushes a toilet. Even in an instance when the water pressure drops drastically, a pressure-balance valve ensures that the water temperature doesn't change by more than 3° F.

Antiscald devices have been required in hospitals and nursing homes for decades. Now, 31 states have enacted, or will do so soon, legislation requiring pressure-balance valves in all residential remodeling and new-construction projects.

Antiscald devices are a wise investment. According to the Consumer Product Safety Commission, each year some 200,000 Americans suffer injuries caused by sudden changes in water temperature while they're bathing. Everyone is in danger of getting scalded or falling as they try to escape the hot water, but young children, the elderly and the physically challenged suffer the most injuries.


Until recently, single-handle pressure-balance valves were the only models available; these are fine when replacing a single-handle inner valve or for a full-scale remodel, but they're not very well suited to changing over an existing two-handle faucet. To hide the empty handle holes, you have to install an enormous trim plate, which isn't particularly attractive.

For that reason, we chose the Delta Monitor II (about $260), the first two-handle pressure-balance valve. But, unlike a standard two-handle faucet, which has separate hot- and cold-water handles, the right handle of the Monitor II controls water temperature and the left handle controls water volume. It features a polished-chrome-and-brass finish, and includes a matching tub spout and showerhead.

For our project, we removed a two-handle, 8-in. centerspread faucet through a hole we cut in the back side of the shower wall. We also enlarged the existing handle holes in the acrylic tub surround with a sabre saw to accommodate the Monitor II. If the walls of your shower are covered with ceramic tile, enlarge the holes using either a rotary tool with a 1/8-in.-dia. carbide bit or a sabre saw with an abrasive-grit blade.

<p>REMOVE THE OLD tub spout with a pipe wrench, if it's threaded on. If it's held on by a set screw, remove the screw and pull the spout straight off.</p>

REMOVE THE OLD tub spout with a pipe wrench, if it's threaded on. If it's held on by a set screw, remove the screw and pull the spout straight off.

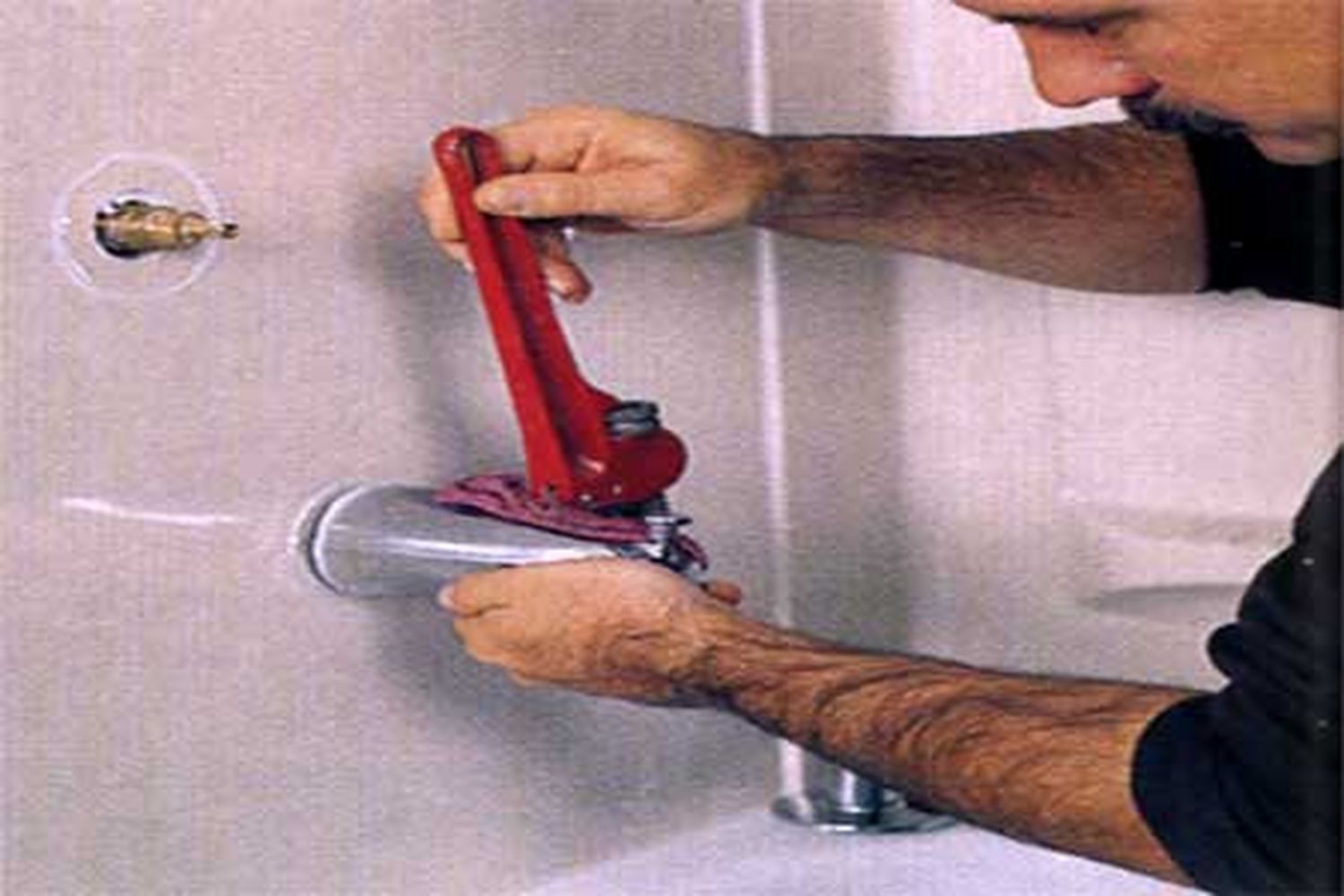

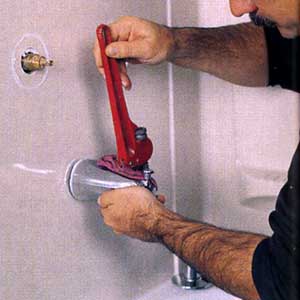

Start by removing the existing faucet handles, escutcheons, showerhead and tub spout. Look for a hex-head set screw on the underside of the tub spout. Loosen it with a hex-key wrench and pull the spout straight out. If there is no screw, the spout is threaded on. Cover it with a cloth and twist it off counterclockwise with a pipe wrench (photo 1), or insert a wood plunger handle in the spout itself and turn it counterclockwise.

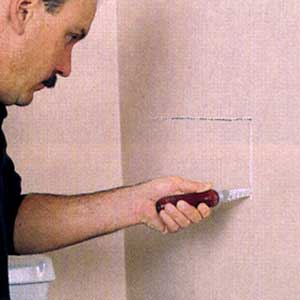

Next, cut an opening in the back side of the plumbing wall with a drywall saw (photo 2); gently pry out the piece and save it. Go from stud to stud (about 141/2 in. wide) and from 6 in. above the faucet handles to 8 in. below the tub spout. Keep in mind that a larger wall opening makes it easier and safer to solder; what's more, it's no more difficult to repair than a smaller opening.

Shut off the water to the tub and shower and cut out the old faucet with a hacksaw or miniature tube cutter (photo 3). Next, move around to the tub side of the wall to enlarge the two handle holes (photo 4) for the Monitor II valves. Cut the right-hand hole to 3 1/2 in. dia. and the left-hand hole to 21/4 in. dia., making sure the enlarged holes measure 8 in. from center to center.

Threaded inlet and outlet ports on the Monitor II accept 1/2-in. male adapters, which have to be soldered, or sweated, onto copper pipe. But to keep from scorching the neoprene and nylon cartridges inside the valve, solder the adapters onto short pipe lengths, called stubs. Allow the fittings to cool completely and then thread the adapters into the ports.

Make all the stubs at least 8 in. long, except the one for the tub spout. It must be cut exactly to length: Set the valve assembly into the wall openings and measure down to the hole for the spout.

<p>CUT AN ACCESS hole into the wall behind the old tub faucet. Start the hole 6 in. above the faucets and extend it 8 in. below the tub spout.</p>

CUT AN ACCESS hole into the wall behind the old tub faucet. Start the hole 6 in. above the faucets and extend it 8 in. below the tub spout.

Steps 5-8

To establish the exact horizontal length of the supply pipes that protrude from the wall, look at the markings on the black plastic spacers covering the faucet stems. The outer mark should align with the surface of the finished shower wall. Using these marks, cut a length of pipe long enough to leave the threads of a male adapter protruding 3/8 in. from the wall. Solder this assembly together with a male adapter on each end. Wrap the threads of the adapters with Teflon tape and tighten them onto the valve with an adjustable wrench (photo 5).

Set the faucet, fitted with pipe stubs, into the wall with the spacers extending through the wall openings. Match the water-supply pipes with the pipe stubs and mark each cut with a pencil. Remove the faucet, and cut the pipes and stubs to fit. Sand each pipe end with emery cloth, then set the faucet back in place. Brush flux onto the pipe ends and solder the connections with couplings and 45- and 90-degree elbows (photo 6).

Warning: The flame from the torch can scorch and even set fire to combustible surfaces. You should protect the work area with a double thickness of sheet metal or a flame-shield fabric, which is available at plumbing-supply shops.

After soldering the joints, check the marks on the plastic spacers. Reposition the valve assembly, if necessary, then slip a 1 X 2 support block behind the valve pipes (if one isn't already in place) and screw it to the stud at each end. Secure the pipes to the 1 X 2 with copper straps fastened with 1 1/2-in. screws.

Finally, turn the water on and check for leaks.

To trim out the faucet, begin by removing the black plastic spacers from the control stems. Then thread the tub spout onto its male adapter. Mount the volume trim flange and handle onto the left-hand control stem and connect the temperature trim flange and handle onto the right-hand stem. Now test the valve by turning on the water to its highest temperature setting. If the water feels too hot, turn it off, remove the handle and locate the nylon rotational limit stop on the stem. It's marked with two arrows. Rotate the stop several notches, as shown in the manufacturer's instructions, and replace the handle. Retest the system and readjust the limit stop if necessary.

To repair the access hole cut in the wall, screw 1 X 2s between the wall studs, then screw the piece of drywall you removed earlier back in place. Conceal the patch with paper tape and three or four coats of joint compound (photo 7). Finally, on the shower side, apply a thin bead of silicone caulk around both trim plates and the tub spout (photo 8). Allow the silicone to cure overnight before using the tub or shower.

You can now shower comfortably knowing that the only shock you might experience is when you actually sing on key.
