Space and Serenity

Photo by Linda Oyama Bryan

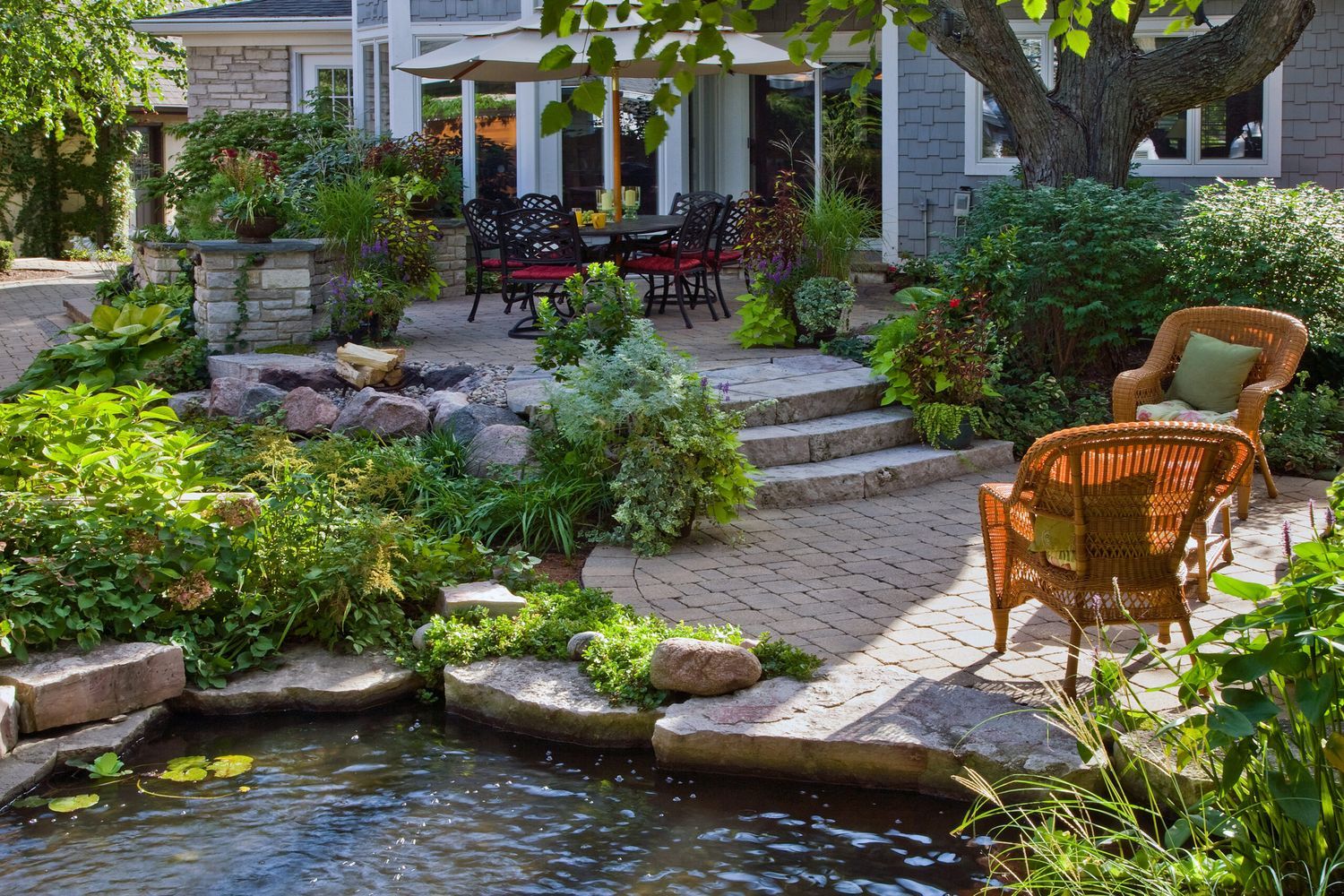

Most Evenings, when the weather is warm, George Kinsella arrives home from work and heads straight to his backyard pond to unwind. "I love the sound of the waterfall and feeding the fish," he says, referring to the three giant koi that swim up to greet him. "It's really relaxing."

If You Build It...

Photo by Linda Oyama Bryan

Kinsella waited seven years to revel in this little daily pleasure. It took five years for him and his wife, Susan, to remodel their 1940s Chicago-area home. Once the house was finally finished, they could concentrate on the landscape, which presented a few challenges. A worn wood deck claimed half the backyard, a 3-foot incline tilted down from the back door to the end of the lot, and George had a long list of what he wanted in the tight 33-by-57-foot space: the pond, of course; a dining area with room for a grill; places for lounging and entertaining his family and friends; a putting green; and an outdoor spa. Out front, he wanted a spot to sit and watch his four teenage sons toss a ball around.

The Master Plan

Photo by Linda Oyama Bryan

George, who owns a landscape firm, sat with his designers to sketch out a plan. Then his crew began to gradually transform the yard, the back one summer and the front the next, fitting in the work between client jobs.

Today, George marvels that he got everything he wanted on his small property, yet it doesn't feel cramped. "It's a cozy space," he says. "But people say 'Holy cow!' when they walk into the backyard. They are blown away by how much is going on." Here are some of the design strategies he and his team used to turn a once featureless space into a lush, varied landscape.

1. Work Back to Front

Photo by Linda Oyama Bryan

On a narrow lot like this one, with limited access points, it's important to decide what the backyard's most important elements will be and start there. This will keep major earthmoving equipment and foot traffic from trampling finished landscaping out front. For George, a good-size pond with a waterfall was priority number one. So the plan called for a dramatic two-tier waterfall to start in one corner of the yard and flow along a 15-foot curve that empties into a pond 15 feet long and 7 feet across at its widest points. As soil was excavated for the pond, it was mounded up behind the basin to create the base for the waterfall; the pond liner was hidden with granite boulders and limestone outcropping, which were softened with pockets of plants. The water feature can be seen from every spot in the backyard and from inside the house.

2. Think in Layers

Photo by Linda Oyama Bryan

The other must-have on George and Susan's list was a patio for outdoor dining just steps from the kitchen—easy on this site, where the yard sloped down and away from the house. The resulting dining patio of tumbled concrete pavers steps down via three wide stone slabs of limestone outcropping to a similar paver patio with seating that hugs the water's edge. Using different levels for the patios creates separate garden rooms; the step-down transition from one area to another helps make the small space feel more expansive. Additional features that George wanted were tucked in alongside the main elements: A putting green found a home between the pond and garage, a hot tub peeks out from under the branches of a tree adjacent to the upper patio, and a grill awaits steaks just outside the kitchen door.

3. Make Features Do Double Duty

Photo by Linda Oyama Bryan

Designing elements that have more than one use adds value in a small yard. The driveway was set with attractive pavers that essentially transform the area in front of the coach-house-style garage into another patio. When hosting their large extended family and friends, the couple can use the space to set up a bar and tables. "This has helped us entertain as many as 100 people here," says George.

Shown: Plants are nestled against wood and stone to lighten their look. Boston ivy climbs up the garage.

3. Make Features Do Double Duty (cont'd)

Photo by Linda Oyama Bryan

Similarly, a low, curved, stone-veneer wall along the upper patio defines the eating area while its bluestone cap doubles as casual seating. Susan also uses the wall as a shelf for colorful containers all year long, changing the plantings to reflect the seasons. Annual flowering plants that fill the pots in spring, summer, and fall are switched out for evergreen boughs and twigs in winter. The frost-proof fiberglass containers weather the elements without problem. When guests arrive, the planters can be moved to make space to set out trays of drinks or hors d'oeuvres at party time.

4. Add Warmth with the Right Light

Photo by Linda Oyama Bryan

George wanted a fire pit that he could see from all over the backyard, so rather than opt for a flat-faced fireplace, he took a cue from the basic campfire. In a corner just off the upper patio, he created a grade-level river-rock-over-gravel "pit" ringed with granite boulders and furnished with a firewood grate for logs. The simple setup gets used year-round; grilling marshmallows has become a traditional Christmas treat. During a daytime event in the summer, Susan might switch out the iron grate for a container of flowers.

4. Add Warmth with the Right Light (cont'd)

Photo by Linda Oyama Bryan

Functional as well as beautiful, outdoor lighting gives a magical quality to the yard at night and extends the use of the space into the evening hours. Lights are hidden under the top edges of the stone wall and steps, and aimed onto pathways for safe strolling after dark. Spotlights angled upward accent the specimen trees and add drama. Lighted cups in the putting green even call out for a few practice shots.

5. Use Paths to Tie Spaces Together

Photo by Linda Oyama Bryan

Paths for strolling and exploring knit together the separate areas of the yard. Decomposed granite walkways curve around the patio and pond, providing a delightful crunch underfoot and a brick-red color that breaks up all the stone and concrete hardscape. Initially set in limestone with wide joints for groundcovers, the path got heavy traffic that never gave the plants a chance to become established and led to muddy footprints inside the house. So the limestone was removed and replaced with a 4-inch layer of decomposed granite over a 3-inch gravel base.

6. Reimagine the Front Lawn

Photo by Linda Oyama Bryan

The traditional swath of green out front provides a place for kids and dogs to play, sure, but strategic hardscape can make the area work even harder. The Kinsellas' front patio of cut bluestone extends a warm welcome and offers a vantage point for the parents to see their four baseball-loving teenage boys play catch. Teak seating to the side of the entry offers an area to relax and enjoy watching the kids. It's also a great place to wait for arriving guests, and, come fall, George and Susan love to sit here to greet costumed trick-or-treaters. The patio's natural bluestone is edged with the same tumbled pavers as in back to tie all the hardscape together.

7. Be Strategic with Plants

Photo by Linda Oyama Bryan

The landscape planting plan revolves around a variety of easy-care plants. Perennials planted in the main beds come back every year and quickly grow to fill empty space. Plants with varying leaf sizes add texture and interest. The wide leaves of green, blue, and variegated hostas contrast with Japanese forest grass's strappy chartreuse foliage. Flowering shrubs such as hydrangea and viburnum provide color during the growing season and then turn rich rosy and burnished hues in autumn.

Shown: Pickerelweed, an aquatic plant, grows at the pond's edge. Its purple-blue flower spikes attract butterflies.

7. Be Strategic with Plants (cont'd)

Photo by Linda Oyama Bryan

Small ornamental trees, including redbud, serviceberry, Japanese maple, and river birch, add spring flowers and interesting bark and foliage—all while screening the views of neighboring houses. Groundcovers such as sedum and pachysandra fill in quickly and soften the look of so much stone.

7. Be Strategic with Plants (cont'd)

Photo by Linda Oyama Bryan

Container gardens provide an easy-to-change, movable feast of color, offering a lot of versatility in a small space. In summer, lush foliage plants, including variegated croton petra, coleus, creeping jenny, chartreuse sweet potato vine, asparagus fern, and grassy-leaved sweet flag, brighten the patios without needing deadheading. Most last into the fall for a long, almost effortless season of continuous color.

The Plan

Photo by Rodica Prato

While the lot measures 60 by 150 feet, the driveway and garage left a backyard area about 33 by 57 feet to work with. Though the terraced design is dominated by the two circular patios and the pond, spots for putting and chipping and an outdoor spa are discreetly tucked in. In front, the lawn was cut back to create a bluestone patio with lush borders and cozy seating. Refer to the plan key below to see the location of specific plants.

The Plan: Section A

Photo by Rodica Prato

1. Diablo ninebark (Physocarpus opulifolius 'Diabolo')

2. Boxwood (Buxus 'Green Velvet')

3. Vinca (Vinca minor 'Dart's Blue')

The Plan: Section B

Photo by Rodica Prato

4. Sweetspire (Itea virginica 'Henry's Garnet')

5. Serviceberry (Amelanchier x grandiflora 'Autumn Brilliance')

6. Pachysandra (Pachysandra terminalis 'Green Carpet')

7. Astilbe (Astilbe 'Rheinland')

8. Astilbe (Astilbe 'Deutschland')

9. Spiderwort (Tradescantia 'Sweet Kate')

10. Lady's mantle (Alchemilla mollis)

11. River birch (Betula nigra)

The Plan: Section C

Photo by Rodica Prato

12. Saucer magnolia (Magnolia x soulangeana)

13. Burning bush (Euonymus alatus 'Compactus')

14. Hosta (Hosta sieboldiana 'Elegans')

15. Panicle hydrangea (Hydrangea paniculata 'Tardiva')

The Plan: Section D

Photo by Rodica Prato

16. Arrow-wood viburnum (Viburnum dentatum)

17. Endless Summer hydrangea (Hydrangea macrophylla 'Bailmer')

18. Kansas peony (Paeonia 'Kansas')

19. Arborviate (Thuja occidentalis 'Techny')

20. Callery pear (Pyrus calleryana 'Chanticleer')

The Plan: Section E

Photo by Rodica Prato

21. Yew (Taxus x media 'Densiformis')

22. Japanese forest grass (Hakonechloa macra 'Aureola')

23. Houttuynia (Houttuynia cordata 'Chameleon')

24. Crab apple (Malus 'Red Jewel')

25. Catmint (Nepeta racemosa 'Walker's Low')

26. Daylily (Hemerocallis 'Stella de Oro')

27. Boston ivy (Parthenocissus tricuspidata)

28. Dwarf Korean lilac (Syringa meyeri 'Palibin')

29. Coral bells (Heuchera 'Plum Pudding')

The Plan: Section F

Photo by Rodica Prato

30. Japanese maple (Acer palmatum var. dissectum 'Crimson Queen')

31. English ivy (Hedera helix)

32. Sedum (Sedum 'Autumn Joy')

33. Feather reed grass (Calamagrostis acutiflora)

34. Hosta (Hosta 'Patriot')

35. Hosta (Hosta 'Regal Splendor')

36. Bailey's Gold sedum (Sedum floriferum 'Weihenstephaner Gold')

37. Silver maple (Acer saccharinum)

1. Diablo Ninebark

Photo by © User: Wouterhagens/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Physocarpus opulifolius 'Diabolo')

Deciduous shrub. Purple foliage; small pinkish-to-white rounded clusters of flowers from late spring to midsummer.

Grows up to 8 feet high and wide. Zones 3 to 7.

2. Boxwood

Photo by © User: Ram-Man/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Buxus 'Green Velvet')

Evergreen shrub. Compact cultivar with glossy, dark green leaves.

Grows up to 4 feet high and wide. Zones 5 to 8.

3. Vinca

Photo by © User: Llez/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Vinca minor 'Dart's Blue')

Perennial. Green leaves; blue flowers with white centers on long green stems from mid spring to midsummer.

Grows up to 3 inches high and 18 inches wide. Zones 4 to 9.

4. Sweetspire

Photo by © User: Ram-Man/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Itea virginica 'Henry's Garnet')

Deciduous shrub. Fragrant white cones of flowers in early summer against dark green oval leaves.

Grows up to 4 feet high and 6 feet wide. Zones 5 to 9.

5. Serviceberry

Photo by © User: Topjabot/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Amelanchier x grandiflora 'Autumn Brilliance')

Deciduous shrub or small tree. White flowers in clusters in spring; bluish-green leaves turn orange in fall.

Grows up to 25 feet high and wide. Zones 4 to 9.

6. Pachysandra

Photo by © User: SB Johnny/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Pachysandra terminalis 'Green Carpet')

Perennial evergreen. Little white flowers in early spring against deep green foliage.

Grows about 12 inches high and wide. Zones 5 to 9.

7. Astilbe

Photo by © User: Kor!An/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Astilbe 'Rheinland')

Perennial. Plume-like pink flowers over glossy green leaves from late spring to early summer.

Grows up to 2 feet high and wide. Zones 4 to 8.

8. Astilbe

Photo by © User: Wouterhagens/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Astilbe 'Deutschland')

Perennial. Spikes of white flowers over glossy green leaves from late spring to early summer.

Grows up to 2 feet high and wide. Zones 4 to 9.

9. Spiderwort

Photo by © User: Magnus Manske/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Tradescantia 'Sweet Kate')

Perennial. Yellow foliage paired with purple flowers that bloom for only one day (anytime from spring to summer).

Grows up to 1 foot high and wide. Zones 4 to 9.

10. Lady's Mantle

Photo by © User: Llez/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Alchemilla mollis)

Perennial. Pale green circular leaves; tiny greenish-yellow flowers from spring to mid autumn.

Grows up to 24 inches high and 30 inches wide. Zones 3 to 8.

11. River Birch

Photo by © User: SEWilco/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Betula nigra)

Deciduous tree. Single or multitrunked tree with an irregular crown. Dark green leaves that eventually turn yellow in fall; exfoliating bark.

Grows up to 70 feet high and 60 feet wide. Zones 4 to 9.

12. Saucer Magnolia

Photo by © User: Nova/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Magnolia x soulangeana)

Deciduous tree. Fragrant, saucer-shaped, white-and-purplish flowers from early spring to summer.

Grows up to 25 feet high and wide. Zones 4 to 9.

13. Burning Bush

Photo by © User: KS0stm/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Euonymus alatus 'Compactus')

Deciduous shrub. Burning bush cultivar. Small yellow flowers in spring; rounded dark green leaves that turn bright red in fall.

Grows up to 11 feet high and wide. Zones 4 to 8.

14. Hosta

Photo by © User: Epibase/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Hosta sieboldiana 'Elegans')

Perennial. White flowers from late spring to midsummer over large blue-green leaves.

Grows up to 3 feet high and wide. Zones 4 to 9.

15. Panicle Hydrangea

Photo by © User: Hedwig Storch/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Hydrangea paniculata 'Tardiva')

Deciduous shrub. Upright, quick-growing shrub with pointed panicles of white flowers that bloom in summer and turn pink with age; dark green leaves.

Grows up to 12 feet high and 10 feet wide. Zones 3 to 8.

16. Arrow-Wood Viburnum

Photo by © User: MPF/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Viburnum dentatum)

Deciduous shrub. White flowers form a mass from spring to early summer. Birds are attracted to the berries that grow in fall, about the time the green foliage turns yellow to orange.

Grows up to 10 feet high and wide. Zones 2 to 8.

17. Endless Summer Hydrangea

Photo by © User: MJJR/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Hydrangea macrophylla 'Bailmer')

Deciduous shrub. Reblooming hydrangea with pink to blue flowers in summer.

Grows up to 4 feet high and wide. Zones 4 to 9.

18. Kansas Peony

Photo by Osb70/Alamy

(Paeonia 'Kansas')

Perennial. Bright double red flowers, on long stems, that bloom in early summer.

Grows up to 3 feet high and 20 inches wide. Zones 3 to 8.

19. Arborviate

Photo by © User: Aka/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Thuja occidentalis 'Techny')

Evergreen shrub. Compact, broad-based dwarf cultivar with dark green foliage that won't yellow in winter.

Grows up to 15 feet high and 10 feet wide. Zones 2 to 8.

20. Callery Pear

Photo by © User: Mfield/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Pyrus calleryana 'Chanticleer')

Flowering tree. Blooms with white flowers paired with glossy green foliage in spring; foliage turns reddish purple in fall.

Grows up to 35 feet high and 16 feet wide. Zones 5 to 9.

21. Yew

Photo by © User: Piotrus/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Taxus x media 'Densiformis')

Evergreen shrub. Dark green needle-like foliage.

Grows up to 4 feet high and 6 feet wide. Zones 4 to 7.

22. Japanese Forest Grass

Photo by © User: Cillas/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Hakonechloa macra 'Aureola')

Ornamental grass. Variegated with a gold stripe on green leaves; greenish-yellow flowers in midsummer.

Grows up to 18 inches high and wide. Zones 5 to 9.

23. Houttuynia

Photo by © User: Meneerke bloem/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Houttuynia cordata 'Chameleon')

Perennnial. Fragrant green leaves with a shade of pink, red, or cream on red stems with white flowers from mid to late spring.

Grows up to 18 inches high and 24 inches wide. Zones 4 to 10.

24. Crab Apple

Photo by © User: Selso/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Malus 'Red Jewel')

Flowering tree. Fills with white flowers in spring and bright red fruit in fall.

Grows up to 18 feet high and 12 feet wide. Zones 4 to 8.

25. Catmint

Photo by © User: Cillas/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Nepeta racemosa 'Walker's Low')

Perennial. Tall spikes of trumpet-shaped purplish flowers on top of green, fragrant foliage from spring to late summer.

Grows up to 30 inches high and 36 inches wide. Zones 4 to 8.

26. Daylily

Photo by © User: BetacommandBot/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Hemerocallis 'Stella de Oro')

Perennial. Bright yellow flowers with deep throats over grass-like foliage from late spring to midsummer.

Grows up to 1 foot high and wide. Zones 3 to 10.

27. Boston Ivy

Photo by © User: Moosh/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Parthenocissus tricuspidata)

Deciduous vine. Fast-growing climber with glossy, dark green leaves up to 8 inches wide.

Grows up to 50 feet high and 10 feet wide. Zones 4 to 8.

28. Dwarf Korean Lilac

Photo by C J Wheeler/Alamy

(Syringa meyeri 'Palibin')

Deciduous shrub. Dense, rounded shrub with pale pink, sweet-smelling flowers in clusters from early to late spring.

Grows up to 5 feet high and 7 feet wide. Zones 3 to 7.

29. Coral Bells

Photo by © User: Zoeds/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Heuchera 'Plum Pudding')

Perennial. Clump former with shiny, dark purple leaves; white flowers from early to midsummer.

Grows up to 24 inches high and 18 inches wide. Zones 4 to 9.

30. Japanese Maple

Photo by © User: KENPEI/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Acer palmatum var. dissectum 'Crimson Queen')

Deciduous tree. Dwarf cultivar with a weeping shape; deeply cut leaves that are red in spring turn dark purple in summer and crimson red in fall.

Grows up to 10 feet high and 12 feet wide. Zones 5 to 8.

31. English Ivy

Photo by © User: BotMultiChill/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Hedera helix)

Evergreen vine. Fast-growing woody vine with 4-inch-wide dark green leaves; clusters of white flowers in fall.

Grows up to 80 feet long and 50 feet wide. Zones 4 to 9.

32. Sedum

Photo by © User: Stan Shebs/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Sedum 'Autumn Joy')

Perennial. Clump former; small pink flowers in late summer turn deep red in fall.

Grows up to 18 inches high and wide. Zones 3 to 9.

33. Feather Reed Grass

Photo by © User: Botaurus/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Calamagrostis acutiflora)

Ornamental grass. Clumps of semigreen foliage until summer; turn greenish brown by fall.

Grows up to 5 feet high and 18 inches wide. Zones 4 to 8.

34. Hosta

Photo by © User: MJJR/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Hosta 'Patriot')

Perennial. Variegated leaves with green centers outlined with cream to white boarders.

Grows up to 18 inches high and 30 inches wide. Zones 3 to 8.

35. Hosta

Photo by © Wildscape/Alamy

(Hosta 'Regal Splendor')

Perennial. Bluish-green leaves with a yellowish border; lavender bell-shaped flowers in summer.

Grows up to 30 inches high and 72 inches wide. Zones 3 to 9.

36. Bailey's Gold Sedum

Photo by © User: Ghislain118/Wikimedia Commons/CC-BY-SA-3.0/GFDL

(Sedum floriferum 'Weihenstephaner Gold')

Perennial. Tiny, yellow star-shaped flowers and green leaves in summer.

Grows up to 6 inches high and 18 inches wide. Zones 3 to 9.

37. Silver Maple

Photo by © Matthew Sontag, CC-BY-SA-3.0, Wikimedia Commons

(Acer saccharinum)

Deciduous tree. Large maple with rounded open crown. Five-lobe green leaves up to 6 inches across.

Grows up to 80 feet high and 70 feet wide. Zones 3 to 9.
