How To Install Wall-Mounted Shelves: A Step-by-Step Guide

Whether you’re looking to organize a cluttered office, showcase decor in your living room, or maximize space in a small bedroom, installing wall-mounted shelves is a project you can tackle in an afternoon.

This guide will walk you through the process, from selecting the right system to putting the finishing touches on your new shelves.

Understanding Wall-Mounted Shelving Systems

There are several different types of wall-mounted shelves to choose from. Below, we’ll discuss some of the most popular options and their benefits.

Types of Wall-Mounted Shelves

Wall-mounted shelving systems come in various styles to suit different needs and decor:

1. Bracket and standard systems
2. Floating shelves
3. Track-based shelves
4. Built-in shelving units
5. Decorative shelf brackets with wood planks

Benefits of Wall-Mounted Shelves

Wall-mounted shelves offer several advantages over freestanding units:

• Space-saving: They don’t take up floor space, making them ideal for small rooms.
• Customizable: You can adjust shelf height and placement to fit your needs.
• Versatile: They work well in any room, from kitchens to bedrooms.
• Affordable: Compared to custom built-ins, wall-mounted shelves are a budget-friendly option.
• Easy to install: With the right tools and instructions, most homeowners can install them without professional help.

Essential Tools and Materials for Installing Shelves

Here’s what you’ll need to install a basic bracket and standard shelving system.

Required Tools

• Drill with drill bits
• Screwdriver
• Level (4-foot recommended)
• Stud finder
• Pencil
• Tape measure
• Hammer (optional)

Necessary Materials

• Shelf standards (twin-track recommended for heavier loads)
• Shelf brackets
• Shelves (pre-cut or custom-sized)
• Screws (2½-inch flathead wood screws for studs)
• Wall anchors (if not hitting studs)
• Candle wax (optional for easier screw insertion)

Preparing for Wall-Mounting Shelves

Proper preparation is key to a successful shelf installation. Take time to plan your project and consider the following factors.

Choosing the Right Location

Select a wall area that’s suitable for your shelving needs. Consider the room’s layout, existing furniture, and how you’ll use the shelves. Avoid areas with obstacles like light switches or air vents.

Determining Shelf Weight Capacity

Calculate the expected weight of items you’ll store on the shelves. Doing so will help you choose the appropriate shelf and bracket system. Remember, the total weight capacity depends on both the shelves and the wall they’re mounted to.

Step 1: Project Overview

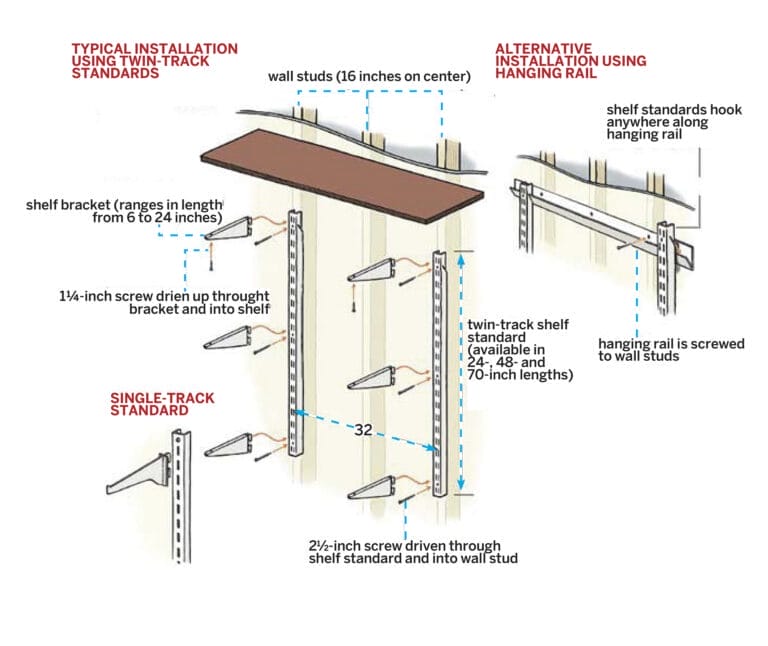

In this Step-by-step, we chose twin-track standards, which take more weight than the single-track version, have brackets that screw to the shelving, and allow you to install standards 32 inches on center (every other stud, rather than every stud). However, if you can’t align the shelf standards with wall studs in every case, you can use hollow-wall anchors.

Step 2: Mark the locations of the wall studs

If you have drywall, locate the studs by sliding an electronic sensor along the wall until you hear a beep or see a red line indicating the stud’s edge. Mark this point in pencil.

Slide the stud finder in the opposite direction to find the stud’s other edge.

Move over 32 inches and repeat for the second standard.

If you have wood-lath plaster walls, use a stud sensor with a metal setting to pinpoint where the lath is nailed to the stud. If you have metal-lath plaster or don’t have a stud sensor, punch tiny holes with a finish nail along the wall until you hit a stud.

Tip: We recommend punching these holes along the baseboard, which makes the holes easier to hide.

Step 3: Drill pilot holes

Hold one of the standards on the wall between the stud edge demarcations. Lightly mark where the top screw hole falls on the stud.

Bore a 1/8-inch-diameter screw pilot hole at the pencil mark, as shown above.

Step 4: Hang the first shelf standard

Hold the standard in place and drive a single 2 ½-inch-long screw hole into the pilot hole (as shown above).

Be sure the screw is snug, but don’t overtighten it—the standard should hang freely straight down.

Tip: Rub candle wax onto the screws to make them go in faster and easier.

Step 5: Drive in the bottom screw

Hold a 4-foot level against the edge of the standard. Adjust it until the level reads plumb, vertically.

Bore a ⅛-inch-diameter screw pilot hole through the bottom screw hole in the standard.

Drive a 2½-inchlong flathead wood screw through the bottom screw hole (as shown).

Place screws in the standard’s remaining screw holes.

Step 6: Hang the second standard

Hook a shelf bracket into each standard, placing opposing brackets at the same level.

Hold the second standard against the wall, centering it on the stud 32 inches away.

Lay a 4-foot level across the two brackets, then raise or lower the unsecured standard until it’s level with the first. Mark the top screw hole location, as shown.

Fasten the standard to the wall following Steps 3 and 4.

Tip: If you intend the shelf to hold a heavy load, add a third support standard in the center, spacing it 16 inches between the stud-mounted standards.

Step 7: Install the shelves

Attach the remaining pairs of brackets.

Slide the shelves onto the brackets and bore a ⅛-inch-diameter hole through the front of the bracket at the small mounting hole. Drill about halfway through the bottom of the shelf, taking care not to drill through it completely.

While holding the shelf down, drive a 1 ¼-inch-long flathead wood screw up through the bracket and into the shelf, as shown above.

Repeat this step to secure the remaining shelves.

Tips for Installing Shelves in Different Wall Types

While the basic installation process is similar, different wall materials may require specific techniques or hardware.

Drywall Installation Techniques

When installing shelves on drywall without hitting studs:

1. Use toggle bolts or molly bolts for added strength.
2. Spread the load by using more standards and brackets.
3. Consider using a backer board attached to studs for extra support.

Masonry Wall Considerations

For brick or concrete walls:

1. Use a masonry bit to drill pilot holes.
2. Insert plastic anchors or lead anchors before screwing in standards.
3. Consider using a hammer drill for easier installation in hard surfaces.

Adjusting and Leveling Your Wall-Mounted Shelves

After installation, fine-tune your shelves by performing the following steps:

1. Use a level to check each shelf’s horizontal alignment.
2. Adjust bracket positions if necessary.
3. Add shims behind standards if walls are uneven.
4. Test stability by gently pressing down on each shelf.

Troubleshooting Common Shelf Installation Issues

Even with careful planning, you might encounter some challenges. Here’s how to address them.

Ealing With Uneven Walls

1. Use shims behind standards to create a level surface.
2. Consider using adjustable brackets that allow for minor tweaks.
3. In extreme cases, install a mounting board to create a flat surface for standards.

Fixing Loose or Wobbly Shelves

1. Tighten all screws in standards and brackets.
2. Check that shelves are properly secured to brackets.
3. Add additional support brackets if needed.
4. Replace any damaged components.

Maintaining Your Wall-Mounted Shelves

Regular maintenance helps your shelves remain safe and organized for years to come.

Regular Cleaning and Inspection

1. Dust shelves and items regularly.
2. Periodically check for loose screws or brackets.
3. Inspect the wall around standards for any signs of stress or damage.

When To Tighten or Replace Components

1. Tighten the screws if you notice any wobbling or movement.
2. Replace brackets if they show signs of bending or wear.
3. Consider upgrading to a more robust system if you consistently overload the shelves.

Our Conclusion

Installing wall-mounted shelves is a relatively simple DIY project that can quickly transform the functionality and appearance of any room. With the right tools, materials, and techniques, you can create a custom storage system that meets your specific purposes and complements your home’s appearance.
