How To Install a GFCI Outlet

Ground-fault circuit interrupter (GFCI) outlets are essential safety devices in modern homes. They protect against electrical shocks and potential fires by quickly cutting off power when they detect a ground fault. If you haven’t updated your home’s electrical system in the last 20 years, you likely need to install GFCIs in key areas. This guide will walk you through how to wire a GFCI outlet and help you troubleshoot common issues.

Tools and Materials Needed for GFCI Outlet Installation

Before you begin, gather the following tools and materials:

• Digital camera or smartphone (to take pictures of the existing wiring configuration)
• Electrical tape
• GFCI outlet
• Needle-nose pliers
• New outlet cover plate (if needed)

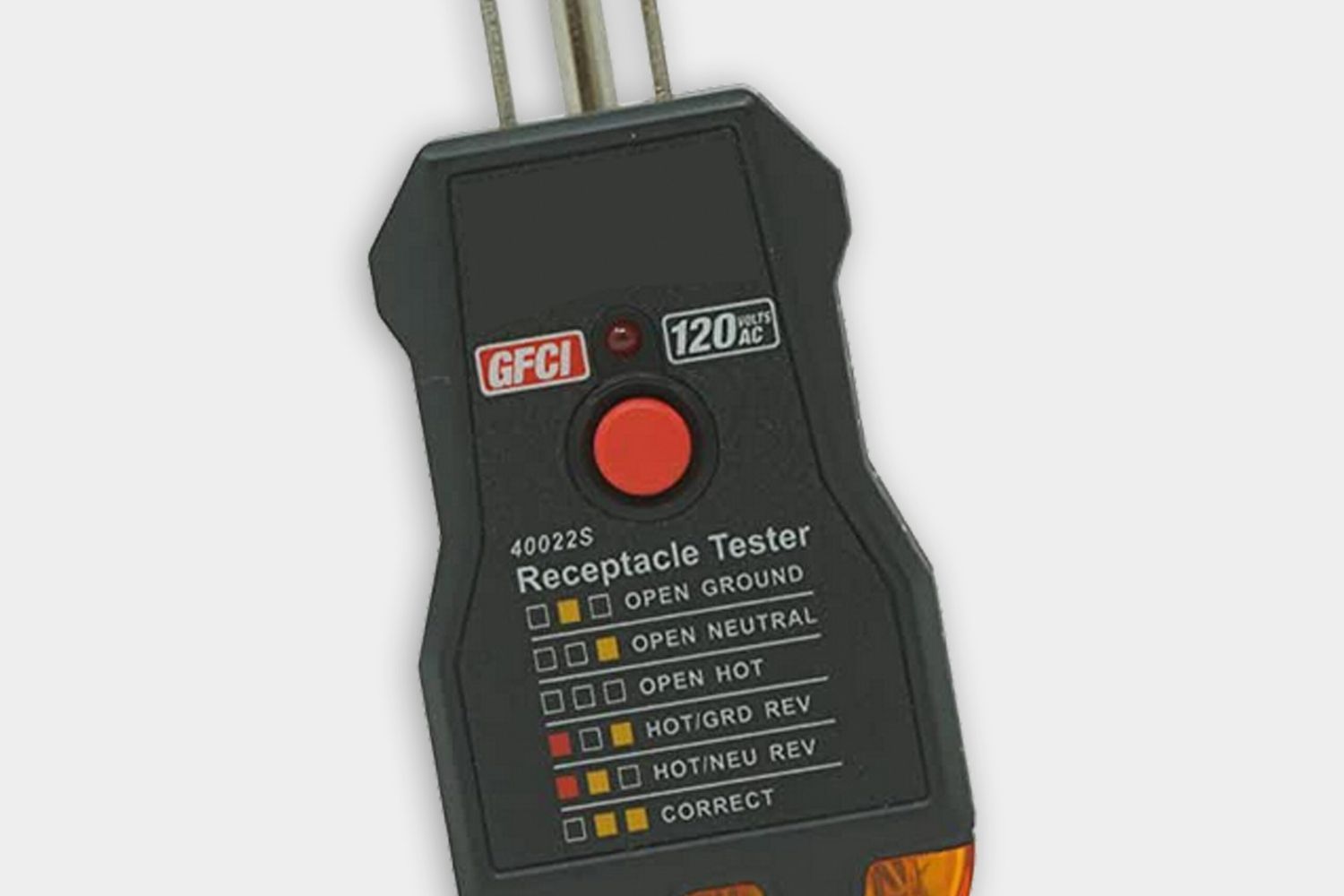

• Outlet tester (to test the functionality of your newly installed GFCI outlet)
• Screwdriver (flathead and Phillips)
• Voltage tester
• Wire nuts
• Wire stripper
• Work light (if you’re working in dimly lit areas)

Safety Precautions for Working With a GFCI Outlet

Safety should be your top priority when working with electricity. Take the following precautions before starting your GFCI installation.

Turn Off the Power

Before you start any electrical work, turn off the power to the circuit you’ll be working on at your home’s main service panel. Follow these steps:

1. Locate the correct circuit breaker and switch it to the off position.
2. If you’re unsure which breaker controls the outlet, turn off the main breaker to cut power to the entire house.
3. Label the circuit breakers during this process to make it easier to identify them for future projects.

Verify the Circuit Is Dead

After turning off the power, use a voltage tester to confirm the circuit is dead by following these steps:

1. Test the outlet you’re replacing and nearby outlets to ensure no power is flowing. This is a key step to ensure safety.
2. Double-check the outlets with a noncontact voltage tester for an additional layer of verification.
3. Test multiple times if necessary to err on the side of caution.

Steps for Wiring a GFCI Outlet

Once you’re certain that you’ve turned off the power, follow our step-by-step guide below to correctly wire your GFCI outlet.

Removing the Old Outlet

Before you can wire your new GFCI outlet, you’ll need to remove the old outlet as follows:

1. Remove the cover plate and unscrew the old outlet from the electrical box.
2. Carefully pull the old outlet out, keeping the wires intact.
3. Document how the wires are connected to the old outlet, as this will guide you in wiring your new GFCI outlet. Consider taking a photo of the existing setup before disassembling it.
4. If the wires are too short or damaged, you may need to use wire extensions or repair techniques such as pigtailing to ensure safe and correct connections.

Identifying Line and Load Wires

GFCI outlets have terminals marked “line” and “load.” The line wires bring power into the outlet, while load wires (if present) carry power to other outlets downstream. You’ll need to identify the line and load wires to maintain the integrity of the GFCI’s protective features. The line wires are typically the ones coming directly from the circuit breaker and always have an active electrical current flowing through them. You can use a voltage tester to help identify these live wires and ensure you don’t make any mistakes.

The load wires, meanwhile, are often the outgoing ones at the top of your electrical panel. In some cases, electrical companies will mark line and load wires accordingly. Consult a wiring diagram or an electrician for clarification if you’re unsure about any of the wires.

Connecting the Line Wires

Once you’ve correctly identified your line and load wires, you’ll need to connect the line wires to the line terminals on the GFCI outlet as follows:

1. Attach the black (hot) wire to the brass screw and the white (neutral) wire to the silver screw on the line side.
2. Make sure the connections are tight and secure.
3. Carefully strip the correct length of insulation from the wires—usually about 3/4 inch—to ensure a solid connection.
4. Avoid overtightening screws to prevent damaging the wires.
5. Double-check the connections to verify they are secure and that you have correctly placed them.

Attaching the Ground Wire

Next, attach the ground wire by following these steps:

1. Wrap the bare copper ground wire around the green grounding screw on the GFCI outlet and tighten it until it’s secure.
2. If the existing setup lacks a ground wire, install one or use a GFCI outlet labeled “no equipment ground” for safety.
3. Be especially diligent about ground fault protection in moisture-prone locations. Proper grounding prevents electrical hazards and ensures compliance with safety standards.

Connecting Load Wires

If you’re using the GFCI to protect downstream outlets, connect the load wires to the load terminals as follows:

1. Follow the same color coding as with the line wires.
2. If there are no load wires, leave the load terminals empty and cover them with electrical tape.
3. Be cautious when connecting load wires, as improper handling can compromise the GFCI’s protective features downstream.
4. Ensure the wires are neatly arranged and secure in the electrical box to prevent future connectivity issues and maintain organizational integrity.

Final Steps: Securing and Testing the Outlet

After making all connections, you can secure and test your new GFCI outlet by following these steps:

1. Carefully tuck the wires into the box.
2. Screw the GFCI outlet into place.
3. Attach the cover plate.
4. Turn the power back on.
5. Test the GFCI by pressing the “test” and “reset” buttons to ensure it’s functioning correctly.
6. Perform a final check with an outlet tester to confirm that the GFCI outlet and related downstream outlets are working as intended.
7. If you detect any issues, recheck your wiring connections and ensure no wires are loose or incorrectly placed.

Common Mistakes To Avoid Installing a GFCI Outlet

Be aware of these common pitfalls to ensure a safe and effective installation.

Reversing Line and Load Connections

One of the most frequent mistakes is connecting the line wires to the load terminals and vice versa. These misconnections will prevent the GFCI from functioning correctly, compromise its protective features, and potentially lead to operational failures or hazard risks. Always double-check your connections before finalizing the installation and use masking tape to label the line and load wires when removing the old outlet.

Forgetting To Test the Installation

After installation, always test the GFCI outlet. Press the “test” button to cut off power, then the “reset” button to restore it. If it doesn’t work as expected, recheck your wiring connections. Ignoring this step can leave you vulnerable to unprotected electrical faults, which could lead to serious safety issues.

Special Considerations for Different Outlet Locations

Different areas of your home may require specific approaches when installing GFCI outlets for optimal safety and compliance.

Kitchen GFCI Installation

Kitchens require special attention due to the number of appliances and the potential for water contact. Consider the following guidelines when installing GFCI outlets in your kitchen:

• Ensure that all countertop receptacles are GFCI-protected.
• Remember that kitchens must have at least two 20-amp circuits for countertop appliances.
• When planning your GFCI installation, consider the placement of major appliances to avoid overload on any single circuit. Ensure adequate spacing and compliance with code requirements to maintain a safe and efficient kitchen environment.

Bathroom GFCI Installation

You must equip all bathroom outlets with GFCI protection due to their exposure to high moisture content. Consider the following recommendations for bathroom GFCI installations, keeping in mind that they often involve confined spaces and high humidity:

• Consider the placement of blow-dryers, electric razors, and other high-usage devices when installing GFCIs.
• Pay extra attention to proper grounding in moisture-prone areas.
• Use moisture-resistant cover plates and ensure there are no gaps in the sealing to further protect the outlet and maintain safety standards.

Outdoor GFCI Installation

Outdoor GFCI outlets need weather-resistant covers to protect against the elements. Consider the following guidelines if you plan to install GFCI outlets outdoors:

• Outdoor installations must comply with local codes that may require additional waterproofing measures or specific enclosure types.
• Place the outlet away from water runoff areas to prevent long-term damage and maintain functionality.
• Properly seal the outlet box to prevent water ingress.
• Use a weatherproof cover that can protect the outlet even while a device is plugged in.

Troubleshooting GFCI Outlet Issues

Even properly installed GFCI outlets can experience occasional problems. Here are some common issues and how to address them.

GFCI Won’t Reset

If a GFCI outlet won’t reset, follow these steps to troubleshoot and resolve the problem:

1. First, check if there’s a ground fault causing it to trip.
2. Unplug all devices and try resetting the outlet.
3. If it still won’t reset, there may be a wiring issue or a faulty GFCI that needs replacement.
4. Keep a spare GFCI outlet on hand for such instances. If you have one, swap out the outlet to determine whether a faulty unit is the issue.

Always follow the manufacturer’s instructions when dealing with resetting problems and enlist professional help if needed.

GFCI Trips Frequently

Frequent tripping could indicate a problem with the GFCI itself, a ground fault in a connected device, or a wiring issue. Here’s how to address the issue:

1. Isolate the cause of the problem by unplugging devices one by one.
2. If you’re not able to determine the cause using the above method, inspect the connected devices for wear and tear or damage. This can often reveal the source of the issue.
3. In some cases, you may have to replace older appliances or fix damaged cords to resolve the frequent tripping.
4. If the problem persists, consult an electrician.
5. Keep a log of tripping instances to help an electrician diagnose the underlying cause.

Electrical Code Requirements for GFCI Outlets

In order to successfully and safely wire a GFCI outlet, you’ll need to understand electrical code requirements. We’ll share some guidance about these requirements below.

Locations Requiring GFCI Protection

The National Electrical Code requires GFCI protection in bathrooms, kitchens, laundry rooms, garages, crawl spaces, unfinished basements, and outdoor areas. Always check local codes for any additional requirements.

Circuit Requirements for Kitchens

Kitchens must have at least two 20-amp circuits for countertop appliances. Ensure that no point along the counter is more than 2 feet from an outlet to comply with code requirements. This spacing ensures you can reach small appliances without using dangerous extension cords.
