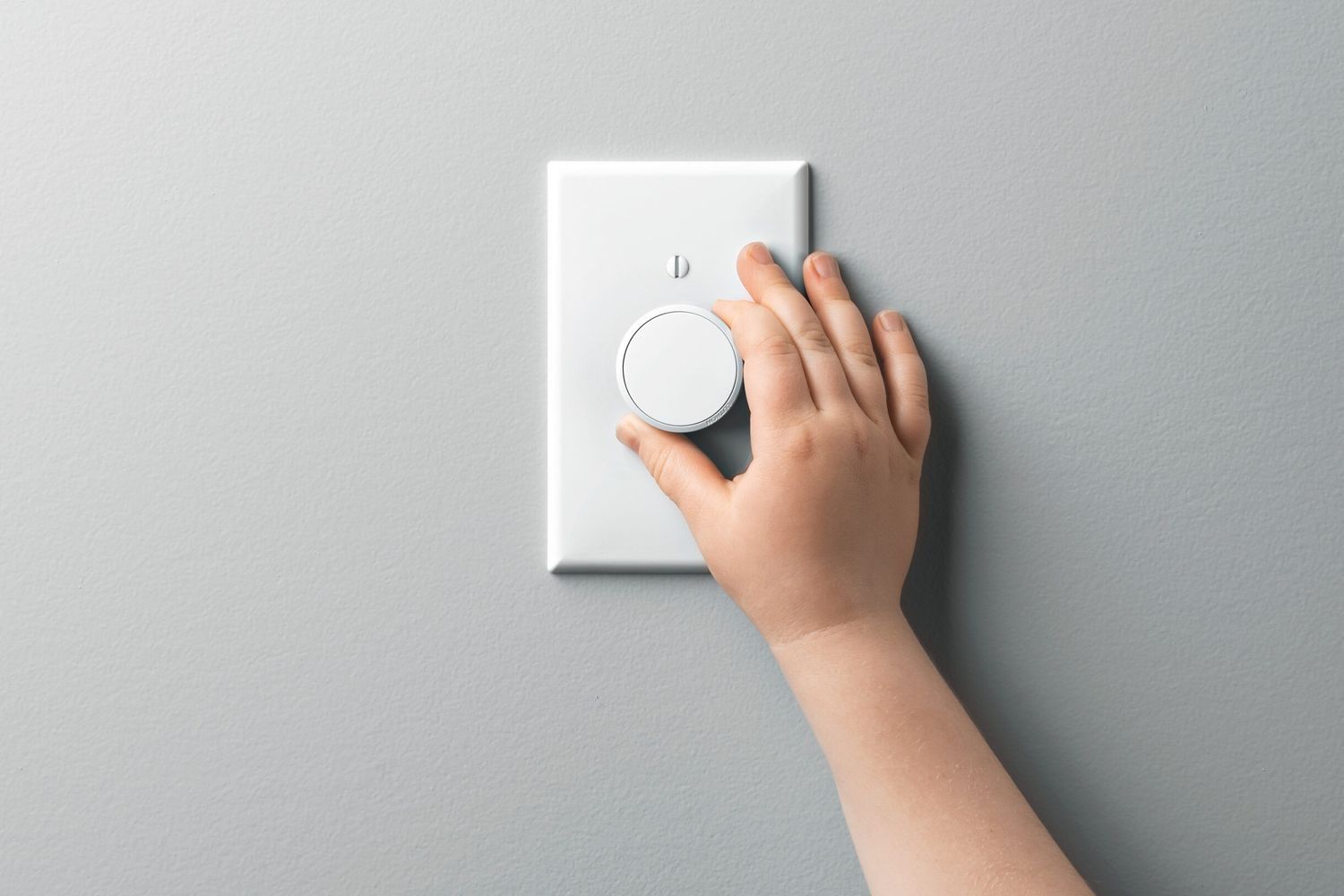

Adding a dimmer switch to control the level of light in a room is a great way to set the mood. You may want bright light for reading, medium light for a romantic evening at home, or low light for watching TV. We’ll teach you how to install a dimmer switch, starting with picking the right type for your space.
Types of Dimmer Switches
There are various dimmer switches available for different needs and lighting setups.
- Modern dimmers: Modern dimmer switches use semiconductor devices to modify the power flow’s waveform. These switches are more efficient, generate less heat, and work well with a variety of bulb types.
- Smart dimmers: If you want to integrate your lighting into a smart home system, smart dimmers offer advanced features like remote control and voice activation. You can control these switches via smartphone apps or smart home hubs.
- Traditional dimmers: Older dimmer switches are rheostats, which reduce electricity flow by converting some of it into heat at the switch. While effective, these switches are less energy-efficient and generate more heat than modern alternatives.
Tools and Materials for Dimmer Switches
Once you’ve selected your dimmer switch, gather these tools and materials:
- Flathead and Phillips screwdrivers
- Wire strippers
- Needle-nose pliers
- Voltage tester
- New dimmer switch
- Wire nuts
- Electrical tape
- Cover plate
Dimmer Switch Safety Check: Before You Begin
Safety should always be your top priority when working with electricity. Before you start any electrical work, turn off the power to the circuit you’ll be working on. Locate your home’s electrical panel and switch off the breaker that controls the light switch you’re replacing. This step is nonnegotiable and helps prevent electrical shocks.
After turning off the power, double-check that the circuit is dead. Here’s how to do it:
- Try flipping the existing switch on and off to make sure no power is flowing.
- Remove the switch plate and use a voltage tester to check the wires in the electrical box.
- If there are multiple switches or receptacles in the same box, test all wires to be certain.
Removing the Existing Switch
Now that you’ve checked that the power is off, it’s time to remove the old switch.
Disconnecting Wires
- Unscrew and remove the switch plate cover.
- Pull the switch out of the electrical box.
- Take a photo or make a note of how the wires are connected to the old switch.
- Cut the existing wires as close to the switch as possible.
There are good reasons for cutting the wires rather than disconnecting them. If the wires attach to the switch with screws, they’ve already been bent and fatigued. Reattaching them might break the wires inside the wire nut. If that goes unnoticed during installation, you could be setting the connection up for an arc fault, which can start a fire. And if it’s the kind of switch where the wires stab straight into the back, they’re hard to remove.
Inspecting the Electrical Box
While the switch is out, take a moment to inspect the electrical box:
- Check for any signs of damage or wear.
- Check that the box is securely fastened to the wall stud.
- Look for any loose wire connections or frayed insulation.
Step-by-Step Dimmer Switch Installation Process
With the old switch removed, you’re ready to install your new dimmer switch.
Preparing the New Dimmer Switch
Here’s how to prepare your work area and the dimmer switch:
- Read the manufacturer’s instructions carefully, noting any specific requirements for your model.
- If your dimmer has wire leads, make sure they’re long enough to reach the house wires. If not, you may need to extend them using wire nuts and short lengths of matching wire.
Connecting the Wires
Follow these steps to connect your new dimmer switch:
- Strip about three-quarters of an inch of insulation from the freshly cut ends of the house wires. Attach them to the leads on the dimmer.
- Match wire colors: typically, black to black (hot), white to white (neutral), and bare ground wire to the green wire from the switch.
- Hold matching wire pairs together so the insulation ends align.
- Twist the wires clockwise using lineman’s pliers until the insulated sections wrap around each other. This helps to prevent any future tension on the connection.
- Secure each connection with a wire nut, twisting clockwise until tight.
- Gently tug on each wire nut to check for a solid connection.
Securing the Switch in the Box
- Carefully fold the wires back into the electrical box.
- Push the dimmer switch into the box, aligning the mounting holes.
- Secure the switch to the box using the provided screws.
- Attach the cover plate, ensuring it sits flush against the wall.
Most dimmers require a Decora cover plate, which has a rectangular opening for the switch.
Dimmer Switch Compatibility Considerations
Not all dimmer switches work with all types of light bulbs or fixtures. When buying a dimmer switch, you need to know what type of light it will control.
Light Bulb Types
Different bulb types require specific dimmer switches:
- Incandescent and halogen bulbs work with most dimmer switches.
- LED and fluorescent bulbs need dimmers specifically rated for the type of light.
Always read the manufacturer’s packaging carefully and check that your bulbs are labeled “dimmable” before using them with a dimmer switch.
Wattage Ratings
Selecting a properly rated dimmer provides safe operation and better performance of your lighting system. Pay attention to the wattage rating of your dimmer switch:
- Calculate the total wattage of all bulbs controlled by the switch.
- Choose a dimmer rated to handle at least that total wattage.
- For LED bulbs, consider their equivalent incandescent wattage when calculating.
For example, a lighting circuit with six 100-watt bulbs has to have a dimmer rated for at least 600 watts.
Special Cases: Three-Way and Four-Way Switch Circuits
Some lighting setups allow you to control a light from multiple locations. These require special wiring and switch types.
A three-way circuit controls a light from two locations. These circuits use a cable with three insulated wires (black, white, and red) plus a bare ground wire. If you’re replacing a switch in a three-way circuit, pay close attention to the existing wiring.
One terminal on that switch will be black. The wire that leads to that black terminal must connect to the black wire on the new dimmer switch. Otherwise, the job is similar. Once you’ve put everything back together, flip the breaker back on and enjoy the new atmosphere you’ve created.
Four-way circuits, which control lights from three or more locations, require even more specialized wiring. If you’re unsure about working with these complex circuits, consider hiring a professional electrician.
Dimmer Switch Testing and Troubleshooting
After installation, it’s time to test your new dimmer switch and address any issues that may arise.
Restoring Power
- Double-check that all connections are secure and that no bare wires are exposed.
- Replace the switch plate cover if you haven’t already done so.
- Return to your electrical panel and turn the circuit breaker back on.
Common Issues and Solutions
If your dimmer isn’t working correctly, try these troubleshooting steps:
- Flickering lights: Make sure that your bulbs are compatible and the dimmer is rated for the total wattage.
- Limited dimming range: Some LED bulbs have a smaller dimming range. Try different bulb brands or types.
- Switch not working: Double-check wire connections and verify that you restored power to the circuit.
If problems persist, consult the manufacturer’s manual or contact a professional electrician for assistance.
