How to Install Wall Frames

Add elegance to any room by creating the look of wainscoting for only $200

Photo by Kolin Smith

We'll let you in on a little secret: A lot of the fancy woodwork you see inside old houses is nothing more than deft layering, bits of simple molding combined to mimic ornate profiles. Consider, for example, the wall frame, the thin rectangle first used by the British in the 1750s to give the illusion of wood paneling after plaster walls came into vogue. If you have a plain room, you don't need to hire a pro—or be one yourself—to get this bit of custom carpentry. As This Old House senior technical editor Mark Powers shows on the following pages, all you need is a miter saw and a nail gun. Then, in just one weekend, you'll be able to add timeless character to a house of any age.


Steps // How to Install Wall Frames
1 ×

Install Wall Frames


Step One // How to Install Wall Frames

Install Wall Frames

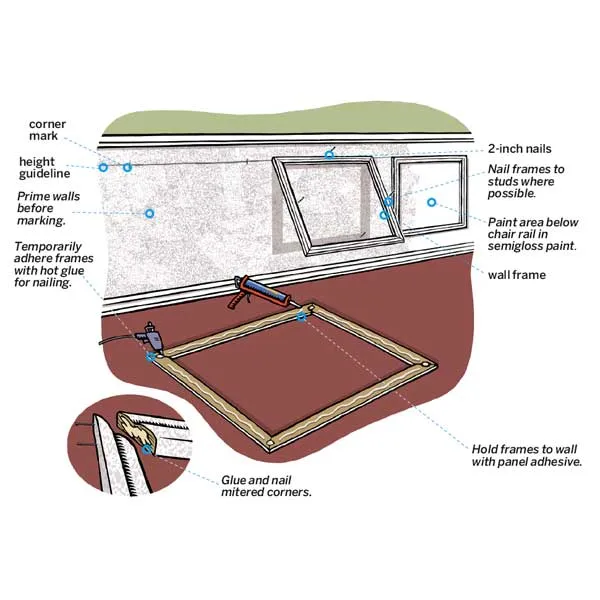

overview of how to install wall frames
Illustration by Gregory Nemec

Day-to-Day Timeline

Friday: Smooth and prime the wall where the frames will go, then create an aesthetically pleasing layout. Once you have the frame sizes established, calculate how much material you will need and go shopping.

Saturday: Create a jig to help you build the frames square and tight. Cut all the molding to size
and build all the frames.

Sunday: Glue and nail all the frames to the wall, fill and sand the nail holes, and paint the area
below the chair rail.


2 ×

Prep the walls


Step Two // How to Install Wall Frames

Prep the walls

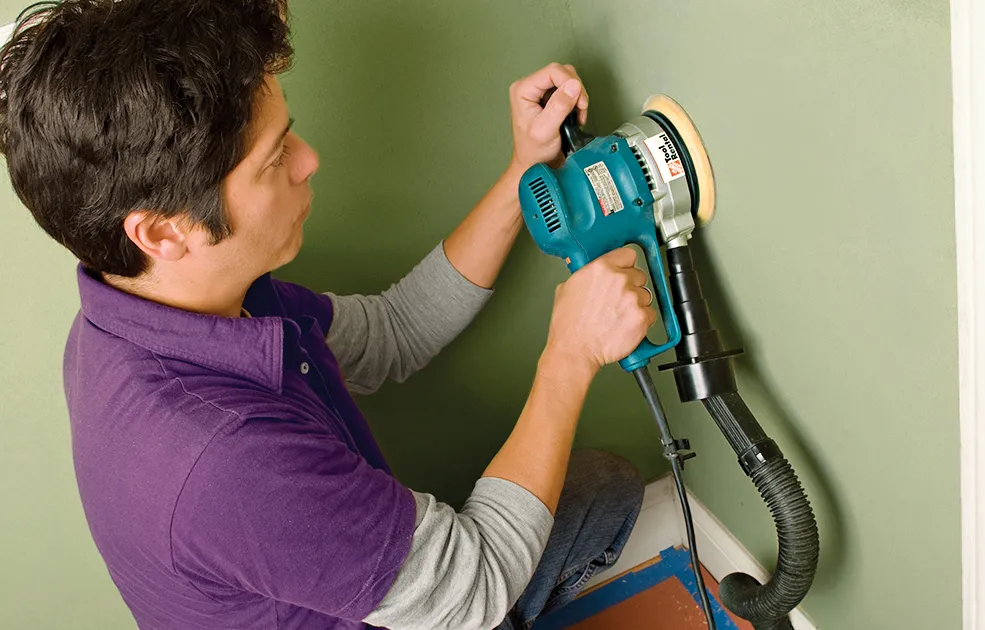

sanding the wall
Photo by Kolin Smith

Smoothing and priming the walls before applying the frames avoids the drips and blobs that often accompany painting around the molding when it's already in place.

Using a random-orbit sander and 150-grit sandpaper, smooth the walls in the area under the existing chair rail.


3 ×

Prime the walls


Step Three // How to Install Wall Frames

Prime the walls

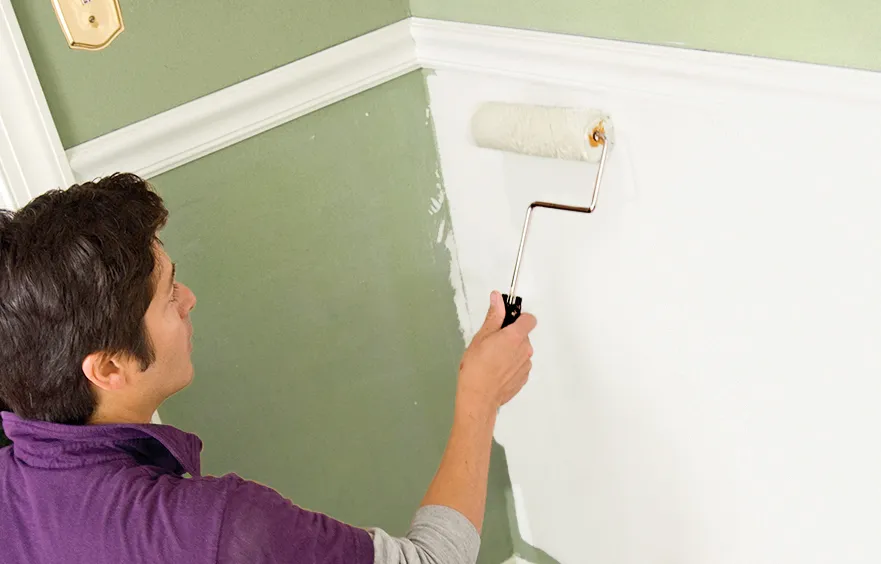

prime the walls
Photo by Kolin Smith

Let the primer dry completely before continuing.

Tip: Since you have the materials out already, plan to prime your molding before cutting and installing. This will save you time later.



4 ×

Mark the Layout


Step Four // How to Install Wall Frames

Mark the Layout

mark the layout
Photo by Kolin Smith

The spacing between wall frames should be from 2¾ to 3½ inches, but the space above and below can be as much as 4 inches. Whatever spacing you choose, stick to it all around the room. The frames can change size, but the measurement above, below, and between them must remain consistent.

To determine the width of the frames for a particular wall, first measure the length of the wall. Add 1 to the number of frames that go on that wall and multiply by the spacing between frames. Subtract that sum from the length of the wall. Finally, divide by the number of frames going on the wall. The result is the outside width of each frame.

Tip: Use this formula to calculate frame sizes: wl – (s x (f + 1)) ÷ f = fw
Where wl is the wall length, s is the spacing between frames, f is the number of frames, and fw is the frame width. So, for example, a 60-inch wall with 3 frames on it set 3 inches apart would mean each frame is 16 inches wide: 60" – (3" x (3 + 1)) ÷ 3 = 16"


5 ×

Measure and mark


Step Five // How to Install Wall Frames

Measure and mark

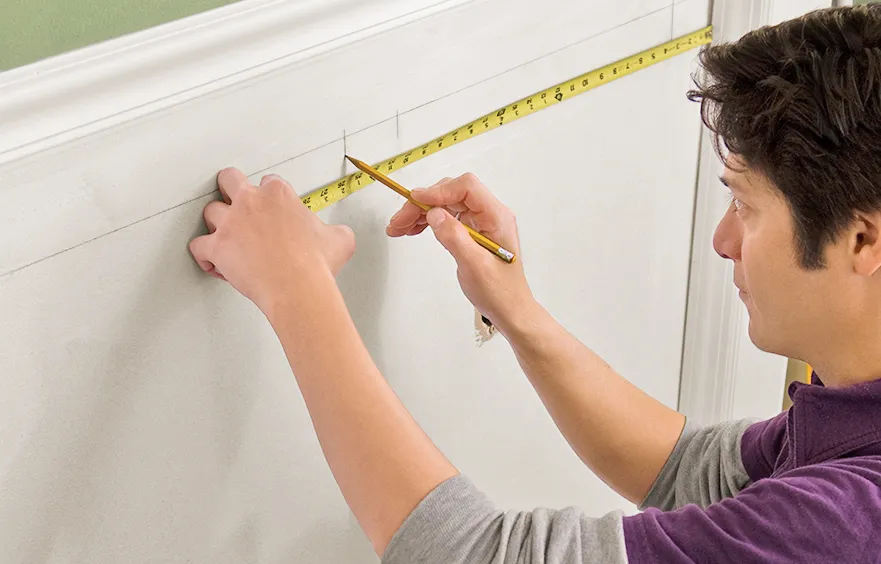

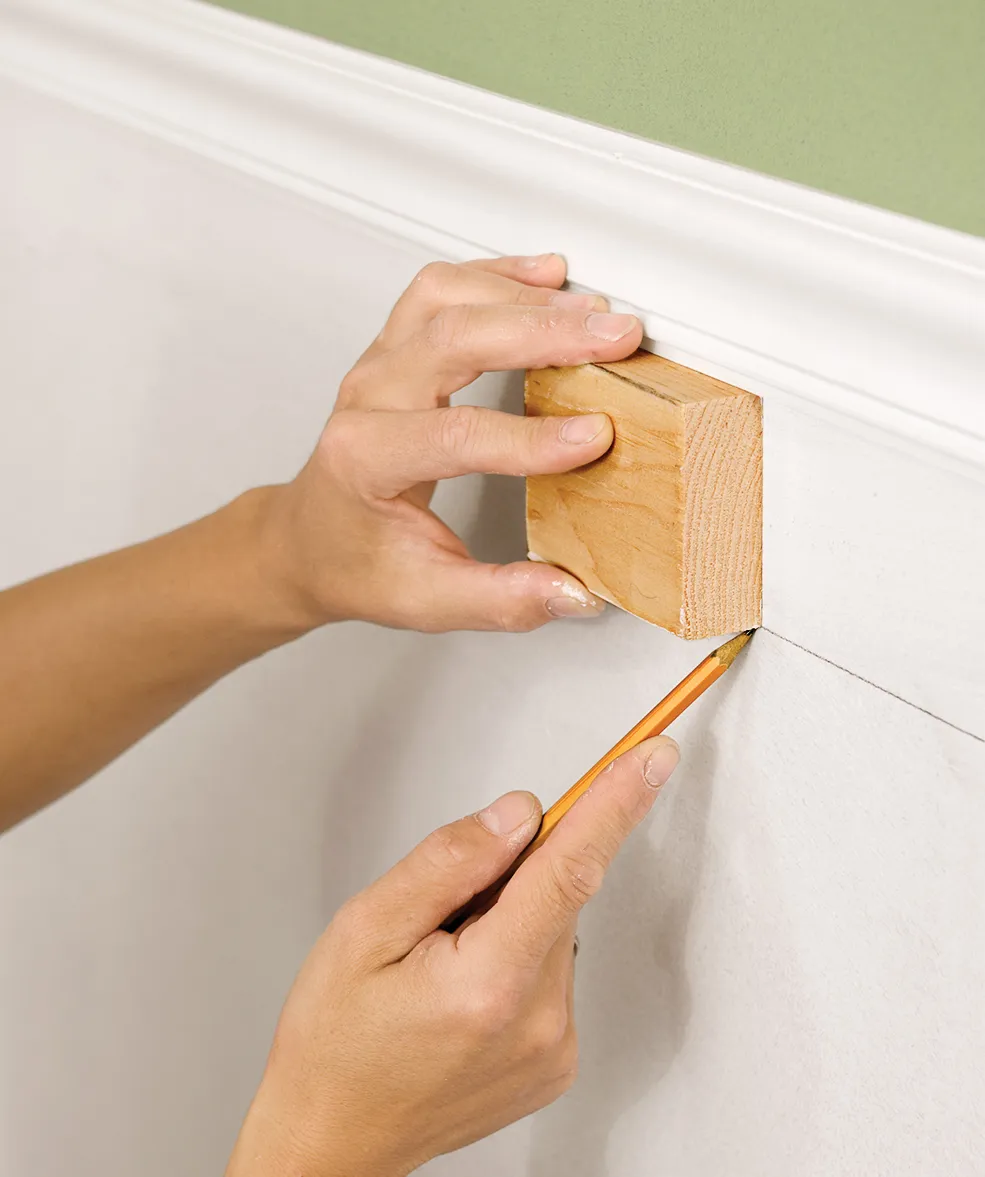

Measure and mark the outside corner of frame
Photo by Kolin Smith

Measure and mark where the outside corner of each frame falls on the top layout line.


6 ×

Make a jig


Step Six // How to Install Wall Frames

Make a jig

Using a framing square, draw two perpendicular lines on the plywood
Photo by Kolin Smith

A jig is a guide that helps keep your work uniform in size or shape. This one, made from plywood and scrap lumber, is for aligning the square corners of the frames.

Using a framing square, draw two perpendicular lines on the plywood. Position the lines far enough from the edges of the plywood to accommodate a piece of molding.


7 ×

Position and set


Step Seven // How to Install Wall Frames

Position and set

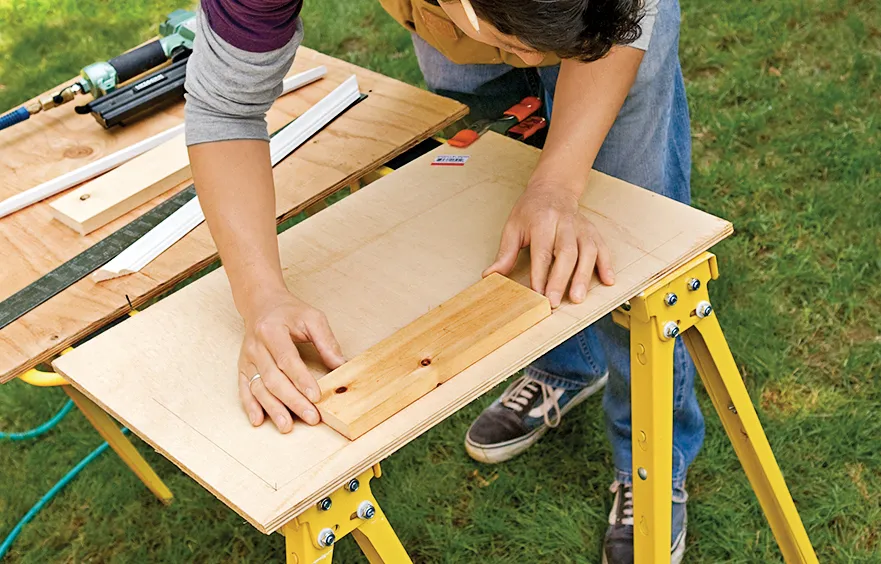

Position the scrap against one of the lines on the plywood
Photo by Kolin Smith

Determine the inside width of the smallest frame you've designed. Cut a piece of scrap wood to a length shorter than that measurement. Position the scrap against one of the lines on the plywood and set into the corner of the intersecting lines. Using a brad nailer, tack the scrap to the plywood.


8 ×

Tack in place


Step Eight // How to Install Wall Frames

Tack in place

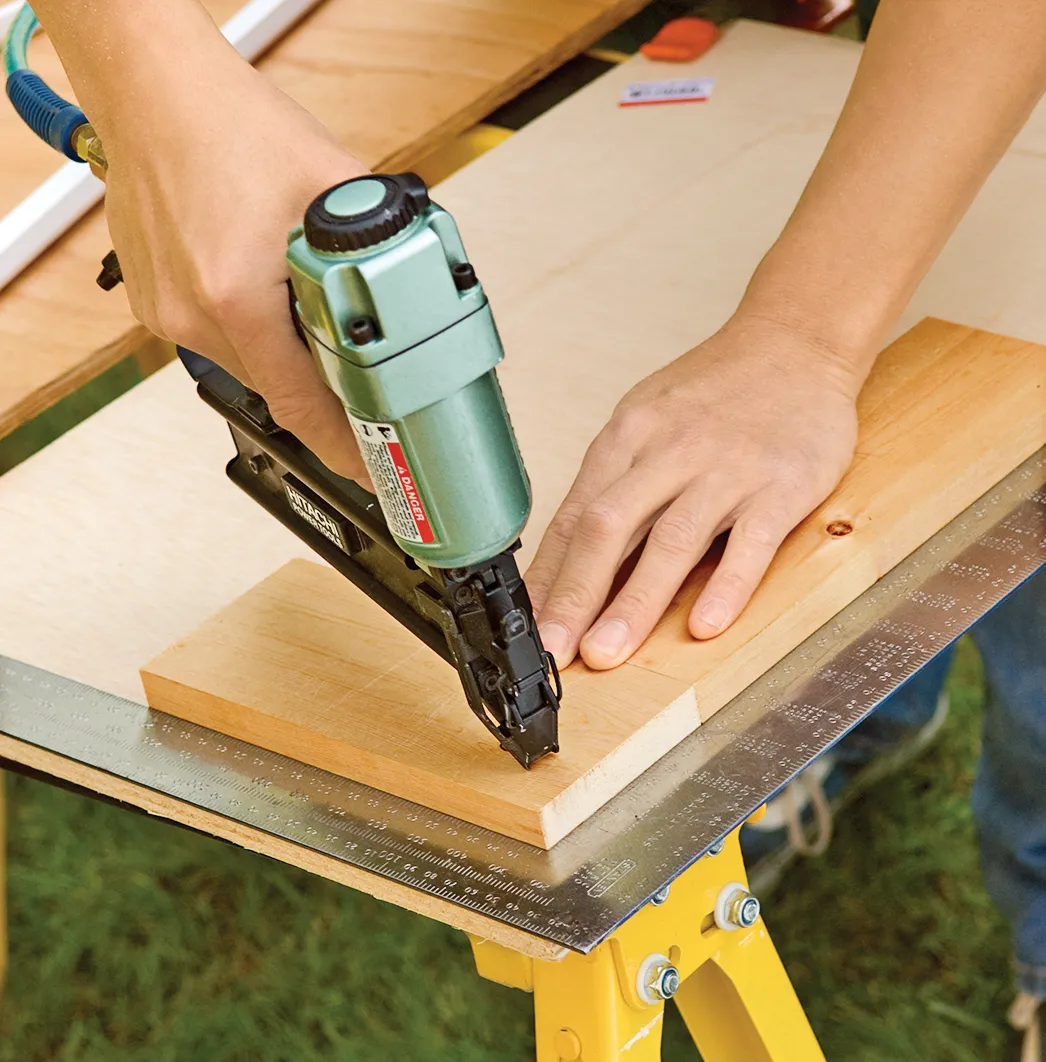

tack the second scrap in place
Photo by Kolin Smith

Cut another piece of scrap to place perpendicular to the first piece. Make sure that the two pieces together are still shorter than the inside measurement of your smallest frame. Use a framing square to check that the two pieces of scrap are perfectly square to each other. Tack the second scrap in place.


9 ×

Build the frames


Step Nine // How to Install Wall Frames

Build the frames

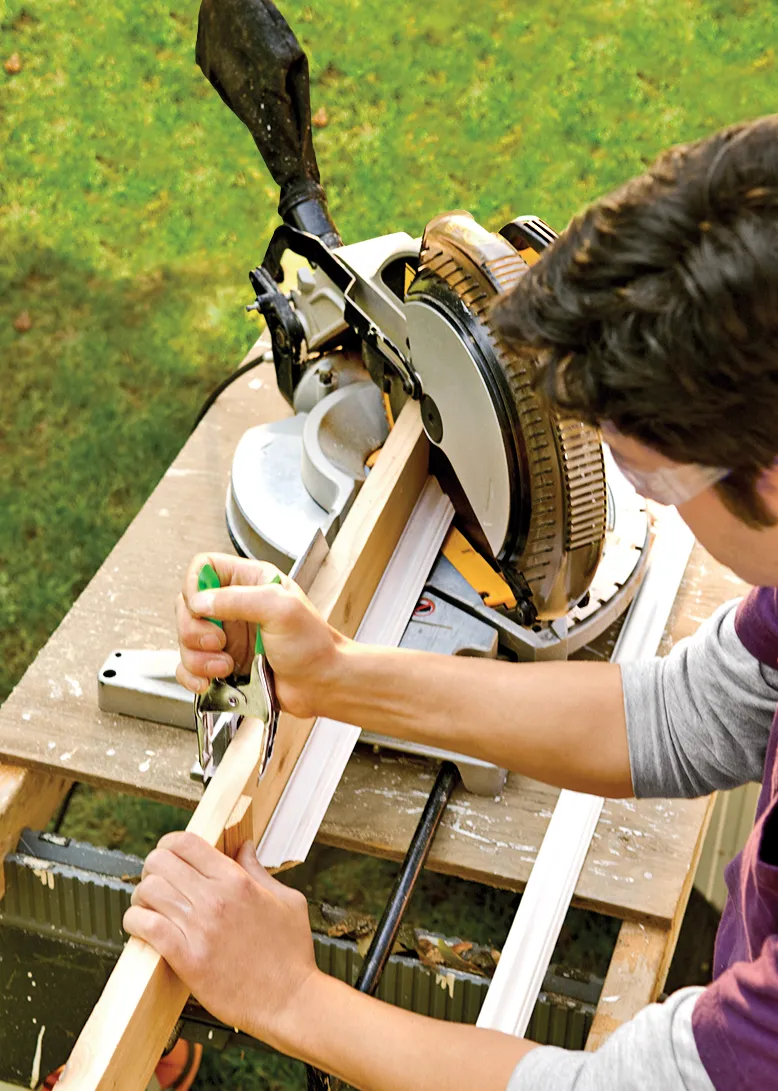

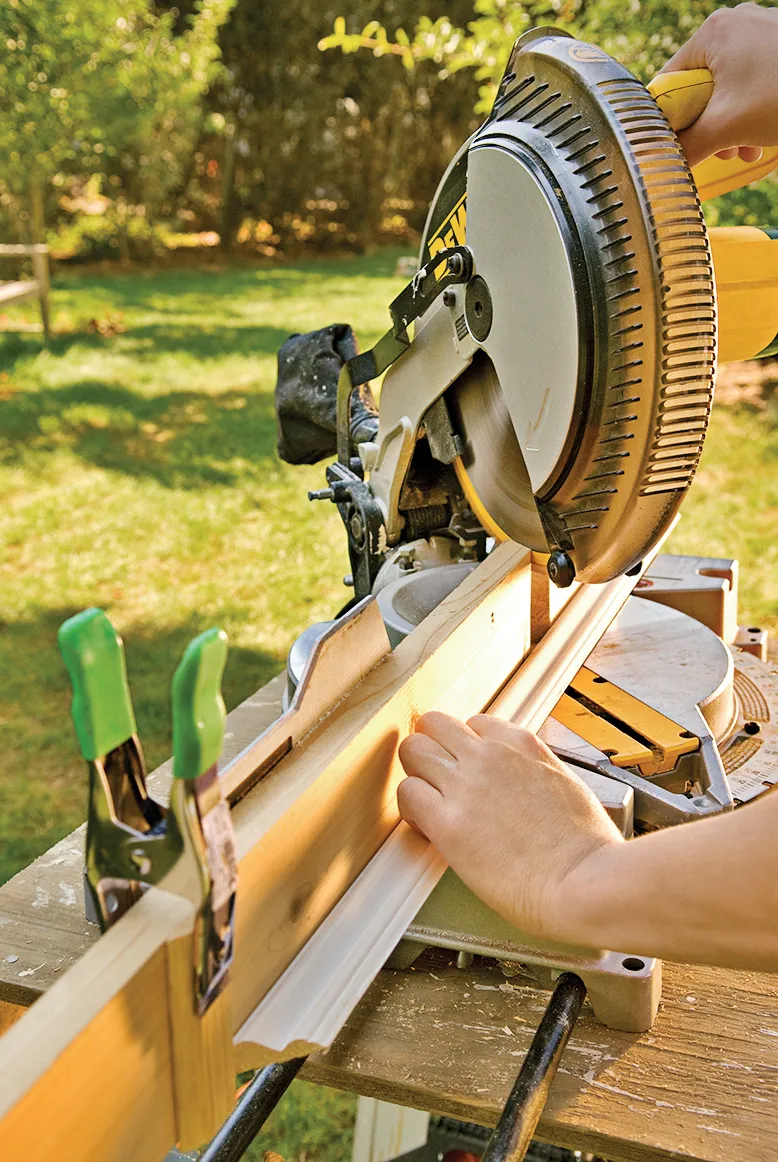

clamp the stop into place against the left end of the molding.
Photo by Kolin Smith

To make uniform frames, you'll need to cut your molding into consistent pieces. You can do this by clamping a piece of scrap wood to the fence on your miter saw to act as a stop, allowing you to make matching pieces without measuring every time. It also helps to have a list of all the cuts you'll need ready ahead of time and to mark each piece's length on the back after you cut it.

Place a piece of molding rightside up on the saw deck, fat edge against the fence. Set the blade to the right at 45 degrees. Cut the left end of the molding at this angle. Measure out the desired length on the molding along the longer back edge and mark it. Swing the blade to the left and set it to 45 degrees. Slide the molding over to line up the blade with the mark, and cut the right side of the molding. Leaving the blade down, clamp the stop into place against the left end of the molding.


10 ×

Cut the molding


Step Ten // How to Install Wall Frames

Cut the molding

cut the molding
Photo by Kolin Smith

Continue cutting all the molding for this length with the stop in place. Adjust the stop for each of the different lengths on your cut list, and cut until you have the pieces you need to build all the frames.


11 ×

Apply wood glue


Step Eleven // How to Install Wall Frames

Apply wood glue

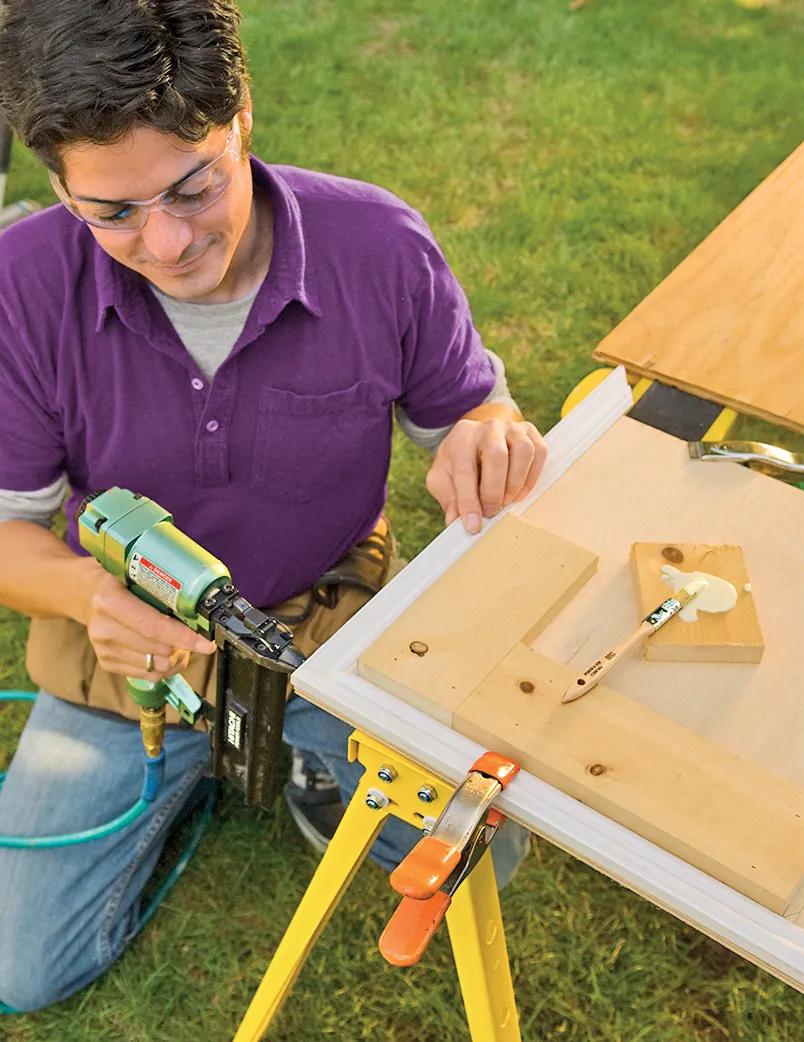

Using a brad nailer and 2-inch nails, secure the mitered corner
Photo by Kolin Smith

Using a chip brush, apply wood glue to the mitered ends of two adjoining pieces of molding and position them around the jig. Line up the corner so that the edges are flush and square, tight to the jig. Clamp the molding in place to the jig. Using a brad nailer and 2-inch nails, secure the mitered corner of the frame by shooting two nails into the fattest part of the molding. Continue assembling the frame corner by corner until complete. Make all the frames and set them aside.


12 ×

Install the frames


Step Twelve // How to Install Wall Frames

Install the frames

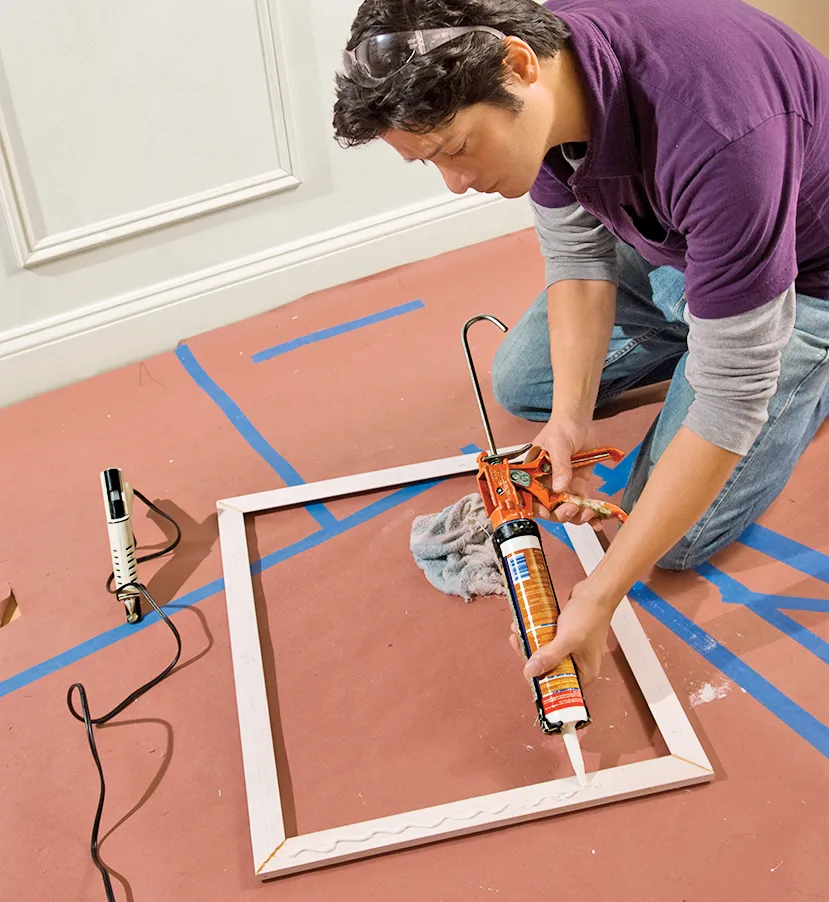

Using a caulk gun, apply panel adhesive to the four sides of the frame
Photo by Kolin Smith

As you put the frames on the wall, it's more important to align them relatively parallel to the elements around them—the chair rail, a wall corner, or door trim—than to check them for level or plumb. The frames go up with panel adhesive, which will hold them to the wall permanently, but quick-drying hot glue clamps them in place while the adhesive sets.

Using a caulk gun, apply panel adhesive to the four sides of the frame. Using a hot-glue gun, put a dab of glue on each corner.


13 ×

Tack the frame


Step Thirteen // How to Install Wall Frames

Tack the frame

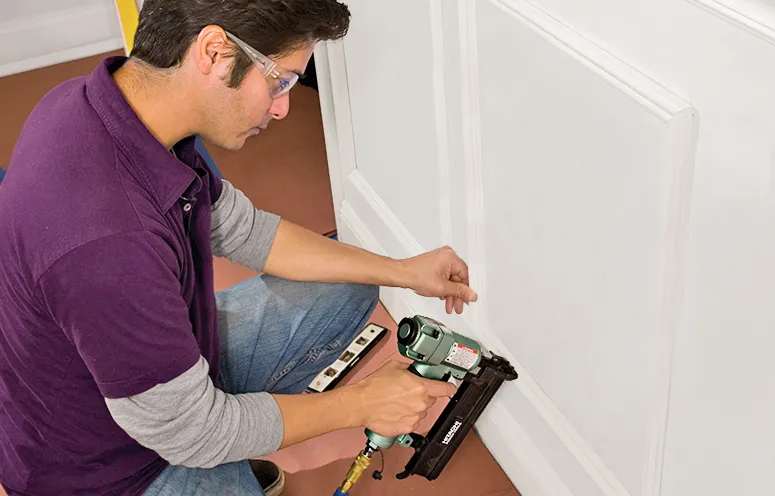

Tack the frame to the wall
Photo by Kolin Smith

Tip the top of the frame against the crosshatches on the layout line on the wall. Make sure the frame is aligned correctly before pressing the whole piece into place. Using a brad nailer, tack the frame to the wall once on all four sides. Aim for the wall framing, if you know where it is.


14 ×

Fill any nail holes


Step Fourteen // How to Install Wall Frames

Fill any nail holes

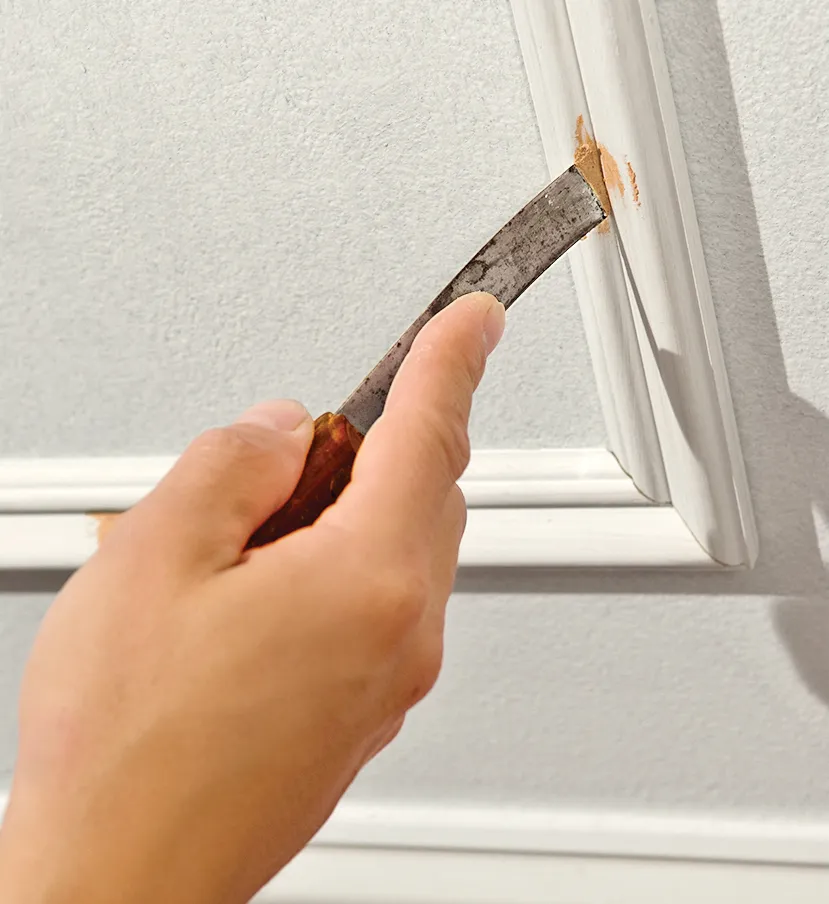

Using a small putty knife fill any nail holes with putty
Photo by Kolin Smith

Filling nail holes and caulking before you paint ensures that the frames will look integral to the walls.

Using a small putty knife or your finger, fill any nail holes with putty. Caulk any gaps at the mitered corners or between the frames and the wall. Allow the putty and caulk to dry completely. Using 220-grit sandpaper, smooth all the nail holes and take down any rough patches on the molding.


15 ×

Paint the frames


Step Fifteen // How to Install Wall Frames

Paint the frames

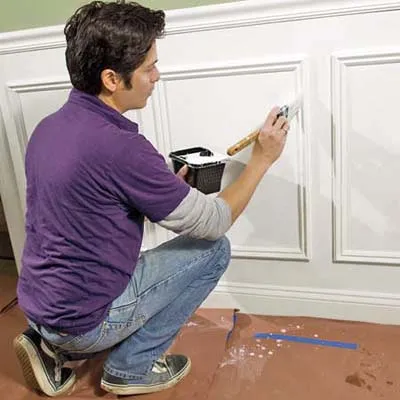

Paint the Frames
Photo by Kolin Smith

Using a paint brush and paint roller, coat the entire area from the chair rail down with semigloss paint.
