Garden gate styles
Photo: Mathew Benson
« »

Garden Gate

Sturdy construction is key to preventing a sagging gate. And so is the right hanging hardware, usually a pair of sturdy strap hinges sized to cover one-fourth to one-third of the gate's width. Here's how three styles from Snug Cottage Hardware ably do the job.

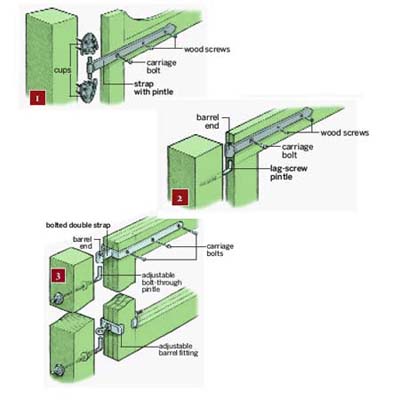

1. Surface mounted, with a cupped pintle: On the decorative galvanized-steel hinges used in this project, the pin (or pintle) is part of the strap, which is attached with a carriage bolt and wood screws. The bottom "cup" is screwed to the face of the post, and the pintle set into it. Another cup covers the pintle top and is screwed in, making for a very rigid hinge that can carry up to 150 pounds.

2. Open-topped, lag-screw pintle: A J-shaped pintle is lagged into the side of the post ready to receive the barrel end of the strap. This most-basic style allows for more swing and makes the gate easy to remove.

3. Bolted double strap: For the heaviest-duty field or driveway gates, a double strap wraps both sides of the stile and rail; the pintle is bolted through the side of the post. The bottom fitting adjusts easily if the gate gets out of kilter.
