How to Build an Arbor Bench
By
Photo: Kolin Smith

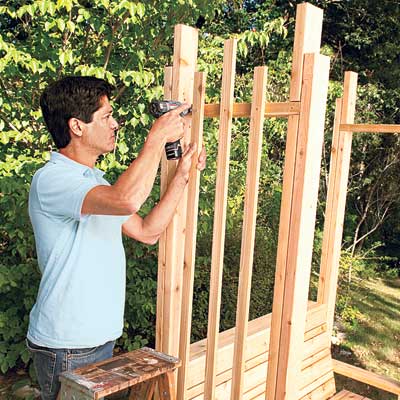

Fit the upper and middle crosspieces into the gaps in the legs (the middle ones act as armrests for the bench). Secure them by toenailing 3-inch screws through the crosspieces and into the inside faces of the legs. Cut 1x2 lattice strips to size, per the cut list. Center the longer vertical strip between the bench's legs, and attach it to the crosspieces with 1¼-inch screws. Center the shorter strips vertically and place them equidistant from the long strip and the leg. Attach to the crosspieces with 1¼-inch screws. Repeat on the opposite side.
Steps
- Introduction
- Overview
- 1. Make Pilot Holes for the Post Anchors
- 2. Set the Post Anchors
- 3. Level and Square the Post Anchors
- 4. Dry-fit the Pieces
- 5. Assemble the Legs
- 6. Install the Legs
- 7. Cut and Assemble the Seat Base
- 8. Attach the Base and Lower Crosspieces
- 9. Cut the Pieces and Install the Side Supports
- 10. Secure the Center Support
- 11. Cut the Seat Boards
- 12. Attach the Seat Boards
- 13. Attach the Backrest Boards and Cap the Top
- 14. Install the Remaining Crosspieces and Vertical Strips
- 15. Cut and Install Horizontal Strips
- 16. Cut the Pieces and Draw the Tail Profile
- 17. Cut the Rafter Tails
- 18. Install the Rafters
- 19. Install the Purlins
