How to Build an Arbor Bench
By
Photo: Kolin Smith

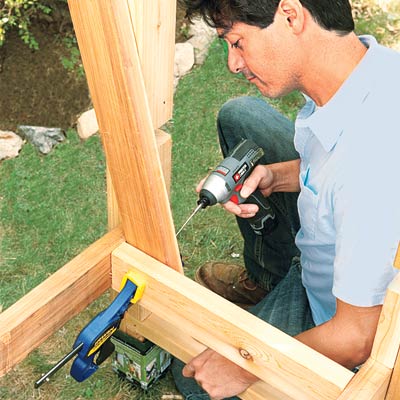

Use a miter saw to cut parallel 30-degree cuts to the ends of the backrest supports, per the cut list. Slide the side support between the leg and the seat base so that the bottom is flush with the underside of the base's outer stringer. Clamp it in place and drive 2⅝-inch screws through the support and into the crosspiece. Repeat on the opposite side.
Tip: If you prefer a straight backrest, square-cut the supports and reinforcement block instead of mitering them.
Steps
- Introduction
- Overview
- 1. Make Pilot Holes for the Post Anchors
- 2. Set the Post Anchors
- 3. Level and Square the Post Anchors
- 4. Dry-fit the Pieces
- 5. Assemble the Legs
- 6. Install the Legs
- 7. Cut and Assemble the Seat Base
- 8. Attach the Base and Lower Crosspieces
- 9. Cut the Pieces and Install the Side Supports
- 10. Secure the Center Support
- 11. Cut the Seat Boards
- 12. Attach the Seat Boards
- 13. Attach the Backrest Boards and Cap the Top
- 14. Install the Remaining Crosspieces and Vertical Strips
- 15. Cut and Install Horizontal Strips
- 16. Cut the Pieces and Draw the Tail Profile
- 17. Cut the Rafter Tails
- 18. Install the Rafters
- 19. Install the Purlins
