How to Build an Arbor Bench
By
Photo: Kolin Smith

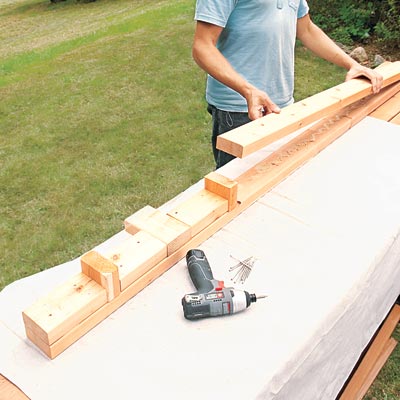

Refer to the diagram on the previous page. Each leg is made from one long 2x4 built up with 2x4 support blocks separated by gaps where the crosspieces, bench, and rafter assembly will be attached. Cut the pieces to size per the diagram, then lay out a set of leg pieces on a flat surface, using scrap blocks of 2x4 as spacers between the support blocks.
Steps
- Introduction
- Overview
- 1. Make Pilot Holes for the Post Anchors
- 2. Set the Post Anchors
- 3. Level and Square the Post Anchors
- 4. Dry-fit the Pieces
- 5. Assemble the Legs
- 6. Install the Legs
- 7. Cut and Assemble the Seat Base
- 8. Attach the Base and Lower Crosspieces
- 9. Cut the Pieces and Install the Side Supports
- 10. Secure the Center Support
- 11. Cut the Seat Boards
- 12. Attach the Seat Boards
- 13. Attach the Backrest Boards and Cap the Top
- 14. Install the Remaining Crosspieces and Vertical Strips
- 15. Cut and Install Horizontal Strips
- 16. Cut the Pieces and Draw the Tail Profile
- 17. Cut the Rafter Tails
- 18. Install the Rafters
- 19. Install the Purlins
