How to Build an Outdoor Bar Cart
By , This Old House magazine
Photo: David Prince

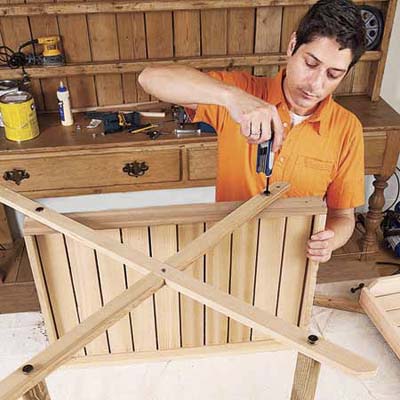

Stand the bottom tray on a long side and the crosspieces on their ends. Lay one set of the cart's legs over these pieces, handle recess facing down. Line up the pilot holes with the insert nuts in the tray and crosspieces. Using a hex key, twist hex-head connector bolts through the holes and into the nuts. Fit one end of the handle into the recess, and use a 1½-inch stainless-steel screw to secure it to the leg through the countersink.
Steps
- Introduction
- Overview
- 1. Cut the Pieces
- 2. Cut Out the Top Tray's Handles
- 3. Attach Ledges to the Long Sides
- 4. Make the Tray Frames
- 5. Attach the Bottom Boards
- 6. Cut and Mark the Legs
- 7. Make the Notch Cuts
- 8. Drill Holes and Recesses
- 9. Assemble the Sides
- 10. Drill Pilot Holes for the Bottom Tray
- 11. Add Insert Nuts to the Bottom Tray
- 12. Add Insert Nuts to the Crosspieces
- 13. Assemble the Cart Bottom
- 14. Attach the Second Side
- 15. Attach Wheels to the Axle
- 16. Build the Bottle Rack
