Installing a Bathroom Vent Fan
By
Photo: Keller + Keller Photography

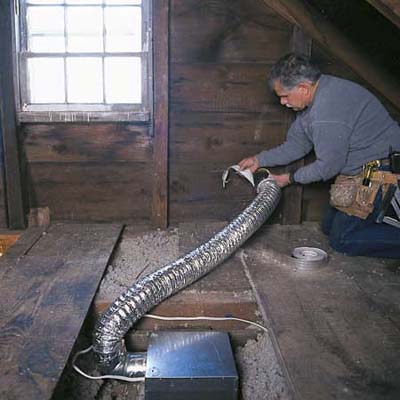

After securing the wall cap to the outside wall, move into the attic.
Grab the free end of the flexible exhaust duct and carefully stretch it to the outside wall.
Attach the duct end to the wall cap's connector duct with foil duct tape.
Steps
- Introduction
- Overview
- 1. Drill a Reference Hole
- 2. Mark the Ceiling
- 3. Cut the Intake-Port Hole
- 4. Position the Fan
- 5. Attach the Fan to the Joists
- 6. Cut a Duct Hole Through the Sidewall
- 7. Install the Wall Cap
- 8. Attach the Exhaust Duct to the Wall Cap
- 9. Make the Wire Connections
- 10. Attach the Grille
