How to Build a Radiator Cover
By , This Old House magazine
Illustration: Gregory Nemec
Overview

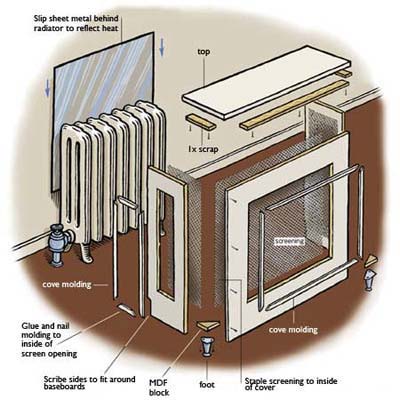

A radiator cover is basically a three-sided box with feet on the bottom and a lid on top. The one shown here is made from MDF (medium density fiberboard), an inexpensive and stable choice for a painted cover. Each side of the box allows heat to radiate outward through a large opening covered by a decorative metal screen. Behind the radiator, a piece of sheet metal helps reflect heat out into the room. You can also add a 1x strip across the open back for stability if it will fit between the radiator and the wall. Note: MDF creates a lot of dust as it's cut, so plan to work over a drop cloth, preferably out of the house.
That same wall behind the cover also offers some stability, especially if you scribe the cover's sides to fit against the baseboard. In these circumstances, two feet in the front will hold the cover as it leans on the wall and baseboard for rear support. Otherwise, use four feet. Adjustable feet can be a big help when leveling the cover, as years of dripping water have often warped the floor beneath the radiator.
Finding the right feet also offers you the first of several design choices. Screening comes in myriad designs, from austere to ornate. Cove molding on the inner edge of the screen openings gives the cover a more finished appearance. And though we chose to leave the top unadorned for a streamlined modern look, you could edge it with base cap (turned upside down) for a fancier bullnosed profile.
