How to Install a Garage Floodlight

By: Joseph Truini, This Old House magazine

Shopping List

Supplies You Will Need

FLOODLIGHT:

1. ROUND OUTLET BOX

2. LAMP-HOLDER COVER

3. MOTION SENSOR

4. LAMP HOLDERS (2)

5. 90-WATT HALOGEN BULBS (2)

WIRING:

6. 14-GAUGE INSULATED STRANDED WIRES

7. TWIST-ON WIRE CONNECTORS

8. ELECTRICAL TAPE

9. 14/2 NONMETALLIC CABLE (AKA ROMEX)

HARDWARE:

10. 1/2-INCH EMT CONDUIT

11. CONDUIT ELBOWS

12. CONDUIT HANGERS

13. STRAIGHT CONDUIT COUPLERS

] 14. RIGHT-ANGLE CONNECTORS WITH REMOVABLE COVERS

15. CABLE CONNECTORS

16. METAL JUNCTION BOX

17. EXTENSION BOX WITH CONNECTOR

18. COMBINATION 15-AMP GFCI RECEPTACLE AND SWITCH

19. 2-INCH GALVANIZED DECKING SCREWS
for attaching electrical box to wall

20. SILICONE CAULK
to seal hole

]

Close
Tools List
Tools You Will Need
- Side-cutting lineman's pliers
- Wire stripper
- Magnetic torpedo level
- 12-inch-long 7/8-inch spade bit
- Tape measure
- Phillips-head screwdriver
- Drill/driver
- Ladder
- Fish tape
- Hacksaw (to cut conduit
- Round file or reamer,
  to remove burrs on just-cut conduit
- Utility knife
Close

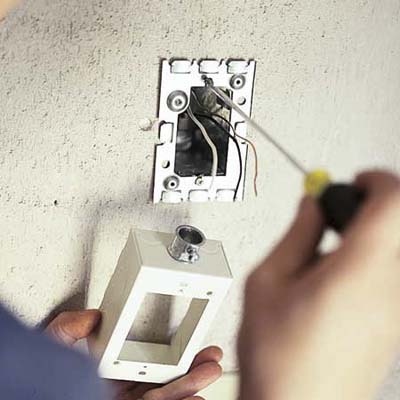

Attaching the extension box of a floodlight

Photo: Richard Howard

Introduction
Overview
Steps:
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9

1. Attach the extension box

• After turning off the electricity to the garage, remove one of the existing wall receptacles.
• Screw the metal mounting plate that comes with the extension box to the electrical box in the wall.
• Use a screwdriver to pry the round knock-out plug from the top of the extension box. Attach a 1/2-inch metal conduit connector to the top of the box.
• Fasten the extension box to the mounting plate with the two long screws provided.
