Step 5: Scribe the latch plate

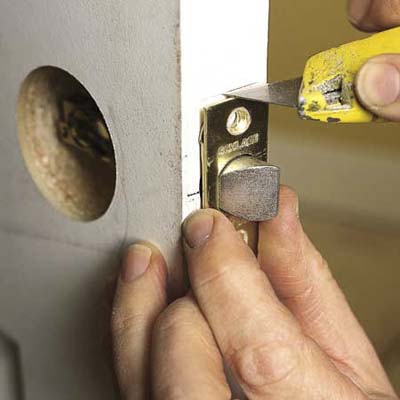

Scribing the latch-plate
Photo: David Carmack
«»
Insert the latch assembly into the edge bore. Be sure that the latch's bevel faces toward the doorjamb.

Outline the rectangular latch plate onto the door edge with a utility knife, then remove the assembly.

Ask TOH users about Doors

Contribute to This Story Below

    Tools List

    • drill
      Electric drill or cordless drill-driver
    • spade bit
      7/8-inch spade bit
    • keyhole saw
      2 1/8-inch hole saw
    • 3/16 masonry bit
      3/32-inch drill bit
    • Phillips screwdriver
      Phillips-head screwdriver
    • 16-foot tape measure
      Tape measure
    • chisel
      1-inch chisel
    • utility knife
      Utility knife
    • hammer
      Hammer
    • combination square
      Combination square
    • Awl

    Shopping List

    1. RADIUS-CORNERED LATCH PLATE

    for factory-mortised doors



    2. LATCH ASSEMBLY WITH SQUARE-CORNERED LATCH PLATE

    3. CARDBOARD TEMPLATE

    included with lockset



    4. RADIUS-CORNERED STRIKE PLATE

    for factory-mortised jambs



    5. SQUARE-CORNERED STRIKE PLATE

    6. DOORKNOBS

    7. WOOD SHIMS
