Step 5: Add head casing

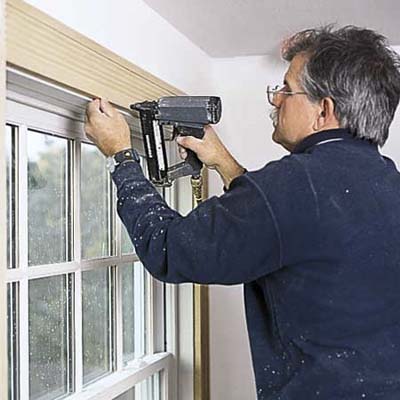

Tom Silva trimming out a window «»
Hold a length of casing across the top of the window and mark where it meets the inside edge of each side casing. With a miter saw, make square crosscuts at those marks.

Glue the head casing to the head jamb, making sure its bottom edge lines up with the reveal line.
Next

Related Content

Ask TOH users about Windows
Discuss

Contribute to This Story Below

Add Comment

    More in House Exterior

    Tools List

    Close
    • finish hammer
      20-ounce finish hammer
    • hand plane
      Hand plane,
      for trimming jamb extensions
    • 16-foot tape measure
      Measuring tape
    • router
      Router,
      for making stool profile
    • random orbit sander
      Random-orbit sander,
      or hand sanding block
    • jigsaw
      Jigsaw,
      for notching stool and profiling apron
    • pneumatic finish nailer
      Pneumatic nailer,
      for attaching casing
    • pencil compass
      Compass,
      for transferring marks and reveal lines
    • table saw
      Table saw,
      for cutting rabbet in bottom of stool
    • try square
      Square,
      for marking casing, stool, and apron
    • utility knife
      Utility knife or chisel,
      for trimming drywall and adjusting fit of stool
    • miter saw
      Miter saw,
      for crosscutting trim pieces to length
    • nailset
      Nail set (to recess heads of hand-driven nails
    • drill
      Drill with 1/16-inch-diameter bit,
      for making pilot holes before hand nailing

    Shopping List

    Close
    1. WOOD MOLDING

    2. CARPENTER'S GLUE

    3. PENCIL

    4. PAINT OR STAIN

    5. 120-GRIT SANDPAPER

    6. WOOD PUTTY

    7. 4D AND 8D FINISHING NAILS
