Step 4: Level the window

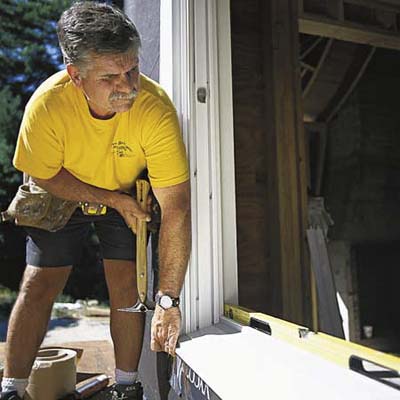

Tom silva installing a window
Photo: David Carmack
«»
Place a 2-foot level on the windowsill, and note its high side. Then hold a 4-foot level against the window jamb on that side, and shift the sill left or right until the level shows the jamb is plumb. Tack a nail into the fin at the lower corner on the same side as the first nail.

Next, lay a 2-foot level on the sill, and adjust the free bottom corner up until the sill is leve. Tack the fin in this lower corner to the wall.

Ask TOH users about Windows

Contribute to This Story Below

    Tools List

    • hammer
      20-ounce hammer
    • two-foot level
      2-foot and 4-foot levels
    • tacker hammer
      Hammer-tacker,
      for stapling builder's felt
    • utility knife
      Utility knife
    • 16-foot tape measure
      Measuring tape
    • caulk gun
      Caulk gun
    • drill
      Optional: Drill-driver and 1 5/8-inch stainless screws,
      for attaching sill extender to bottom of narrow aluminum sill

    Shopping List

    1. WINDOW

    2. CAULK

    3. MINIMIALLY-EXPANDING FOAM INSULATION

    4. 15-POUND BUILDER'S FELT

    an alternative to membrane for flashing the rough opening



    5. WATERPROOF MEMBRANE

    6. METAL FLASHING

    7. FOAM INSULATION

    8. 1 1/2-INCH ROOFING NAILS

    for fastening nailing fins to the sheathing
