Step 4: Install the Legs

Install the Legs to Build Folding Serving Tray

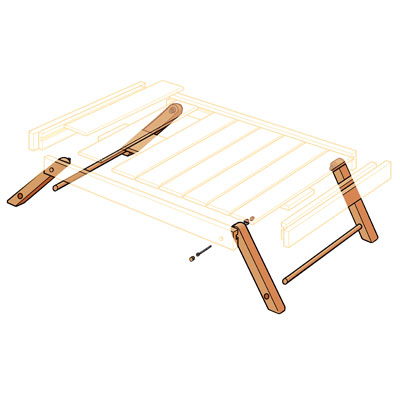

Illustration: Gregory Nemec
«»
Round the tops of the legs with 60-grit sandpaper. Drill a ¼-inch hole 1 inch from the bottom of each leg. Use dowels and glue to join the legs. With a ½-inch spade bit, bore holes ¼ inch deep into the frame's outer face, 1½ inches in from the corners. Drill through the center of each hole with a -inch bit; make matching holes ½ inch from the top of each leg. Attach the legs with nylon washers and machine screws. Cap the holes with oak plugs.
Ask TOH users about Furniture

Contribute to This Story Below

    Tools List

    • 30-foot tape measure
      Tape measure
    • miter saw
      Miter saw
    • drill
      Drill/driver
    • router
      Router with ¼-inch straight bit
    • brad nailer
      Brad nailer
    • 1/8-inch drill bit
      -inch drill bit
    • 3/8-inch drill bit
      -inch drill bit
    • spade bit
      ½-inch spade bit
    • sandpaper
      sandpaper: 60-grit and 220-grit
    • paintbrush
      Paintbrush
    • Chamois or lint-free rag
      Lint-free rag or tack cloth

    Shopping List

    ½-by-2-inch oak scants for the tray frame Get two 4-foot lengths.

    ¼-by-2-inch oak scants for the slats Get three 4-foot lengths.

    ¾-inch oak square dowel for the legs Get one 3-foot length.

    -inch oak dowel for the stretcher between the legs Get one 2-foot length.

    1-inch brads for securing the tray frame

    ¼-by-1½-inch machine screws to secure the legs to the tray Get four.

    ¼-inch nylon washers to place between the legs and the tray Get four.

    ¼-inch metal washers to place between the machine-screw nut and tray leg Get four.

    ¼-inch lock nuts Get four.

    Wood glue

    Wood stain

    Food-safe finish, such as mineral oil or shellac
