Step 5: Install The Mounting Plate

install mounting plate, installation of euro style cabinet hinges
Photo: Ryan Benyi
«»

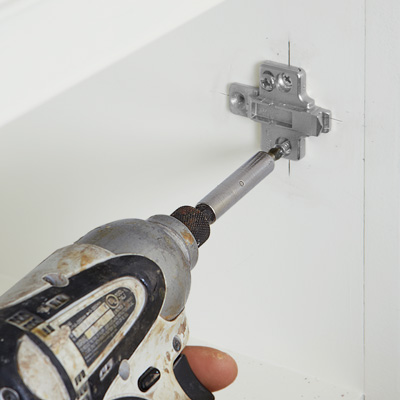

Remove the mounting plate from the hinge. Align its three screw holes with the intersecting layout lines on the side panel. Using the self-centering bit, drill pilot holes through the plate's holes, then attach the plate with the -inch #6 screws, as shown. Do the same for each hinge.
Ask TOH users about Kitchen Cabinets

Contribute to This Story Below

    Tools List

    • pencil
      Pencil
    • 16-foot tape measure
      Tape measure
    • combination square
      Combination square
    • drill
      Drill/driver
    • Forstner bit
      35-millimeter Forstner bit
    • Rafter Square
      Rafter square
    • 7/64-inch self-centering bit
      7/64-inch self-centering bit
    • Phillips head bit
      Phillips-head bit
    • shims
      Shims
    • Pozidriv screwdriver
      Pozidriv screwdriver

    Shopping List

    1. Concealed hinges (usually two per door)

    2. Mounting plate (one per hinge)

    3. -inch #6 wood screws (five per hinge)
