Step 4: Mark The Cabinet

install hinge cups, installation of euro style cabinet hinges
Photo: Ryan Benyi
«»

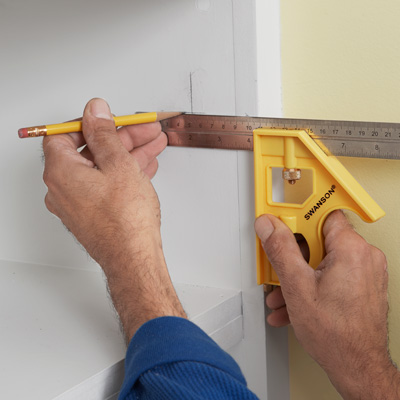

Shim the door in place with an even gap all around, and measure the gap; 1/16 inch is standard. Remove the door, and use a combination square to mark a vertical line on the cabinet's side panel 2¼ inches from the front edge. Then make a horizontal line, as shown, 3½ inches—plus the gap—from the top and bottom of the opening.
Ask TOH users about Kitchen Cabinets

Contribute to This Story Below

    Tools List

    • pencil
      Pencil
    • 16-foot tape measure
      Tape measure
    • combination square
      Combination square
    • drill
      Drill/driver
    • Forstner bit
      35-millimeter Forstner bit
    • Rafter Square
      Rafter square
    • 7/64-inch self-centering bit
      7/64-inch self-centering bit
    • Phillips head bit
      Phillips-head bit
    • shims
      Shims
    • Pozidriv screwdriver
      Pozidriv screwdriver

    Shopping List

    1. Concealed hinges (usually two per door)

    2. Mounting plate (one per hinge)

    3. -inch #6 wood screws (five per hinge)
