Step 14: Add the Batten and the Drain Hole for the Cooler

Photo: Kolin Smith
«»

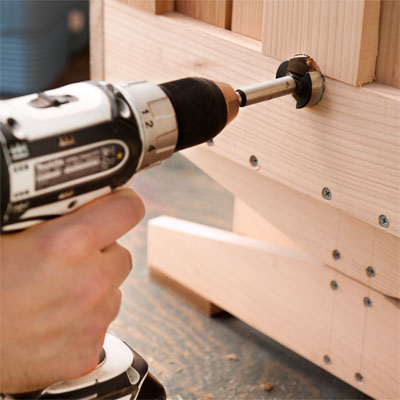

The batten adds strength to the spot where the spigot exits. Place the batten on the top edge of the frame, centered on the hole, and secure it by driving 1¼-inch deck screws from inside the box, one into each corner. Then put a 1-inch Forstner (or spade) bit in your drill. Center the bit over the hole you drilled in Step 13, and make a hole all the way through the side of the box, as shown.
Ask TOH users about Decks

Contribute to This Story Below

    Tools List

    • 30-foot tape measure
      Tape measure
    • miter saw
      Miter saw
    • bar clamps
      Long and short bar clamps
    • drill
      Drill/driver
    • 1/8-inch bit with combination countersink
      -inch combination countersink bit
    • straight edge
      Straightedge
    • circular saw
      Circular saw
    • router
      Router with a ¾-inch straight bit
    • multi-bit screwdriver
      Screwdriver
    • 1/8-inch twist bit
      -inch twist bit
    • spade bit
      1-inch Forstner (or spade) bit
    • adjustable wrench
      two adjustable wrenches

    Shopping List

    1×4 cedar Get eleven 10-footers.

    Igloo Ice Blue MaxCold 50 cooler with threaded drain plug. Go to igloo-store.com

    1½-, 1¼-, and 2-inch deck screws

    -inch brass or stainless-steel screws for the lid slats

    ½-inch brass spigot

    ½-by-3-inch brass nipple

    ½-inch brass double female connector

    29-inch brass or stainless-steel continuous hinge

    Brass or stainless-steel gate handle

    24-inch brass or stainless-steel sash chain

    Wall-mount bottle opener

    Teflon tape

    Double-sided foam tape
