Step 21: Cut the Feet and Brackets

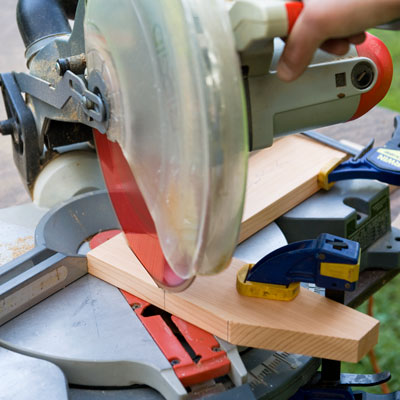

cutting feet and brackets for a picnic bench
Photo: Kolin Smith
«»
The bench trestles are smaller versions of the table trestle, with an extra center bracket. To make the feet and brackets, take a blank and find the center of the long edge, then measure and mark out 1½ inches to each side. Measure and mark 1½ inches up from the bottom corners, and use a straightedge to make diagonal cutlines between the top marks and the side marks.

Clamp a piece of scrap to your miter saw to serve as a stop block, and clamp down each blank to cut it—keep your hands free and clear of the blade. Match your miter saw to the cut angle, make the cut, then make the mirror cut. Use that piece as a template for the other blanks, and cut all the blanks.
Ask TOH users about Outdoor Structures

Contribute to This Story Below

    More in Landscaping

    Tools List

    • 30-foot tape measure
      Measuring tape
    • miter saw
      Miter saw
    • adjustable clamp
      Clamps
    • straight edge
      Straightedge
    • router
      Router with a ¾-inch straight bit
    • bar clamp
      Bar clamps
    • combination square
      Combination square
    • 3/8-inch doweling jig
      -inch doweling jig. Go to Rockler
    • drill
      Drill/driver
    • 3/8-inch twist bit
      -inch twist bit
    • 1/8-inch bit with combination countersink
      -inch bit with a combination countersink
    • 1/8-inch twist bit
      -inch twist bit
    • circular saw
      Circular saw

    Shopping List

    1. 5/4x4. Get three 8-footers for the benches and one 10-footer for the table.

    2. 5/4x6. Get two 8-footers for the benches and seven 10-footers for the table.

    3. 5/4x10. Get one 6-footer for the table.

    4. -by-2-inch spiral-cut

    5. wood dowels

    6. exterior-grade wood glue

    7. ¾-inch brass or stainless-steel screws

    8. 1½-inch deck screws
