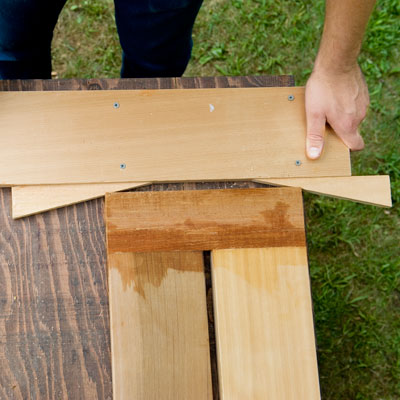

Step 20: Clamp the Bench Assembly

clamping the bench assembly for a picnic bench
Photo: Kolin Smith
«»
Apply glue to one end of the dowels and insert them into the end cap. Apply glue to the exposed ends of the dowels and fit the end caps onto the ends of the seat boards. Lay the piece into the clamping jig. Then use a mallet to tap wedges between the clamping jig and the end caps, as shown. Let the seat cure for at least 1 hour while you work on the trestle.
Ask TOH users about Outdoor Structures

Contribute to This Story Below

    More in Landscaping

    Tools List

    • 30-foot tape measure
      Measuring tape
    • miter saw
      Miter saw
    • adjustable clamp
      Clamps
    • straight edge
      Straightedge
    • router
      Router with a ¾-inch straight bit
    • bar clamp
      Bar clamps
    • combination square
      Combination square
    • 3/8-inch doweling jig
      -inch doweling jig. Go to Rockler
    • drill
      Drill/driver
    • 3/8-inch twist bit
      -inch twist bit
    • 1/8-inch bit with combination countersink
      -inch bit with a combination countersink
    • 1/8-inch twist bit
      -inch twist bit
    • circular saw
      Circular saw

    Shopping List

    1. 5/4x4. Get three 8-footers for the benches and one 10-footer for the table.

    2. 5/4x6. Get two 8-footers for the benches and seven 10-footers for the table.

    3. 5/4x10. Get one 6-footer for the table.

    4. -by-2-inch spiral-cut

    5. wood dowels

    6. exterior-grade wood glue

    7. ¾-inch brass or stainless-steel screws

    8. 1½-inch deck screws
