Step 7: Attach the Slats

rolling outdoor grill table attach table top slats
Photo: Kolin Smith
«»

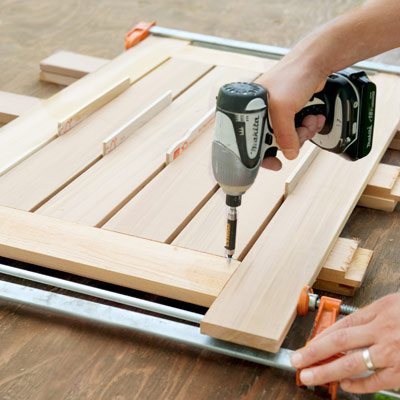

In order to hide the fasteners, lay out the slats rabbet-side up, then fit the frame into place over them. Use spacers (we used paint stirrers) to keep the slats a uniform distance apart. Countersink two 1/16-inch pilot holes through the rail and into the joint at the ends of each slat. Then use -inch brass wood screws to secure the slats, as shown.

Tip: Use perpendicular spacers to push the slats up into the rabbets of the tabletop frame and to keep clamps out of the way.
Ask TOH users about Outdoor Kitchens

Contribute to This Story Below

    Tools List

    • miter saw
      Miter saw
    • bar clamps
      Bar clamps
    • straightedge guide
      Straightedge
    • router
      Router with ¾-inch straight bit
    • combination square
      Combination square
    • Doweling Jig
      -inch doweling jig. Go to rockler.com.
    • drill
      Drill/driver
    • 3/8-inch drill bit
      -inch drill bit
    • hacksaw
      Hacksaw
    • 1/16-inch drill bit with combination countersink
      1/16-inch drill bit with a combination countersink
    • bevel square
      Bevel gauge
    • circular saw
      Circular saw
    • 1/2-inch drill bit
      ½-inch drill bit

    Shopping List

    1. 1x4 cedar. Get seven 10-footers.

    2. -inch by-2-inch spiral-cut wood dowels

    3. -inch brass wood screws to attach the tabletop slats

    4. 1¼-inch deck screws

    5. -inch aluminum rod Get 34 inches.

    6. ½-inch threaded galvanized rod for the axle (36 inches, 13 threads per inch)

    7. ½-inch galvanized flat washers

    8. ½-inch locknuts (13 threads per inch)

    9. 8-inch-by-1¾-inch lawn-mower wheels

    10. Wood glue
