Step 2: Rout the Rails

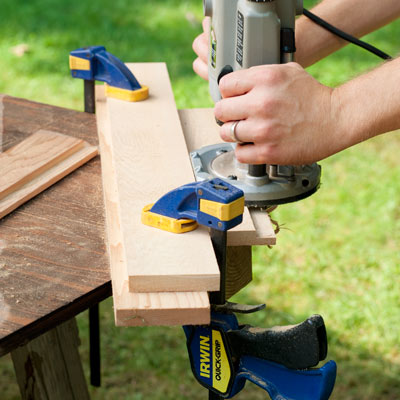

rolling outdoor grill table routing the rails
Photo: Kolin Smith
«»
To keep the clamps out of the router's path, angle a rail across the corner of your work surface, its back edge against a piece of scrap to support your straightedge. Clamp the straightedge over both pieces, positioned to allow your router to cut a ¾-inch-wide channel. Chuck a ¾-inch straight bit in the router, and set its depth to inch. Make several passes, adjusting the depth until the rabbet is inch deep. Rabbet the other rail, too.
Ask TOH users about Outdoor Kitchens

Contribute to This Story Below

    Tools List

    • miter saw
      Miter saw
    • bar clamps
      Bar clamps
    • straightedge guide
      Straightedge
    • router
      Router with ¾-inch straight bit
    • combination square
      Combination square
    • Doweling Jig
      -inch doweling jig. Go to rockler.com.
    • drill
      Drill/driver
    • 3/8-inch drill bit
      -inch drill bit
    • hacksaw
      Hacksaw
    • 1/16-inch drill bit with combination countersink
      1/16-inch drill bit with a combination countersink
    • bevel square
      Bevel gauge
    • circular saw
      Circular saw
    • 1/2-inch drill bit
      ½-inch drill bit

    Shopping List

    1. 1x4 cedar. Get seven 10-footers.

    2. -inch by-2-inch spiral-cut wood dowels

    3. -inch brass wood screws to attach the tabletop slats

    4. 1¼-inch deck screws

    5. -inch aluminum rod Get 34 inches.

    6. ½-inch threaded galvanized rod for the axle (36 inches, 13 threads per inch)

    7. ½-inch galvanized flat washers

    8. ½-inch locknuts (13 threads per inch)

    9. 8-inch-by-1¾-inch lawn-mower wheels

    10. Wood glue
