Step 10: Build the Door Frame: Rout the Rabbets

Build the Door Frame by Routing the Rabbets when Building a Fold-Down Murphy Bar
Photo: Laura Moss
«»

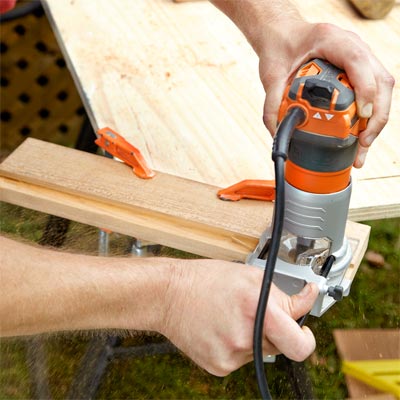

The door frame is made from 5/4×4 boards, with the two stiles routed to create a sturdy half-lap joint with the thinner 1×4 inset slats. First, clamp one of the stiles to your work surface, as shown. Chuck a ¾-inch straight-cut bit in your router, and set the fence to keep the cut at that width. For the depth, start at inch and make several passes, adjusting the bit until the channel is inch deep.
Ask TOH users about Wetbars

Contribute to This Story Below

    Tools List

    • miter saw
      Miter saw
    • bar clamp
      Bar clamps
    • drill
      Drill/driver
    • Countersink bit
      1/16-inch countersink bit
    • brad nailer
      Brad nailer
    • sliding T-bevel
      Bevel gauge
    • straight edge
      Straightedge
    • circular saw
      Circular saw
    • router
      Router with ¾-inch straight-cut bit
    • Doweling Jig
      -inch doweling jig from rockler.com
    • Drill bit
      -inch twist bit
    • Phillips screwdriver
      Phillips screwdriver
    • Rafter Square
      Rafter square
    • two-foot level
      Level

    Shopping List

    1x4 cedar Get three 10-footers for the slats.

    1x8 cedar Get two 10-footers for the box pieces and the gable ends.

    1x10 cedar Get one 8-footer for the roof and top pieces.

    5/4x4 cedar Get one 10-footer for the door frame.

    -by-2-inch spiral-cut wood dowels

    1½-inch brad nails

    1¼-inch deck screws

    3-inch deck screws

    -inch brass screws for the door slats

    brass or stainless-steel hinges, latch, shutter pulls, Quick Links, and chain exterior-grade wood glue
