Step 6: Assemble the Roof: Attach the Gable Ends

Assemble the Roof by Attaching the Gable Ends to Build a Fold-Down Murphy Bar

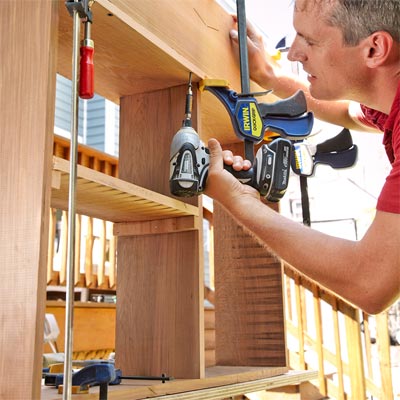

Photo: Laura Moss
«»
Apply glue to the bottom edge of a gable end and stand it on top of the box, flush with the outer edge of the top piece. Nest the V-shaped cutoff piece from Step 2B on the peak to help clamp the gable end in place, as pictured. Countersink pilot holes up through the top piece and into the glued edge of the gable end. Then use 1¼-inch deck screws to secure the pieces, as shown. Remove the clamps and install the other gable end.
Ask TOH users about Wetbars

Contribute to This Story Below

    Tools List

    • miter saw
      Miter saw
    • bar clamp
      Bar clamps
    • drill
      Drill/driver
    • Countersink bit
      1/16-inch countersink bit
    • brad nailer
      Brad nailer
    • sliding T-bevel
      Bevel gauge
    • straight edge
      Straightedge
    • circular saw
      Circular saw
    • router
      Router with ¾-inch straight-cut bit
    • Doweling Jig
      -inch doweling jig from rockler.com
    • Drill bit
      -inch twist bit
    • Phillips screwdriver
      Phillips screwdriver
    • Rafter Square
      Rafter square
    • two-foot level
      Level

    Shopping List

    1x4 cedar Get three 10-footers for the slats.

    1x8 cedar Get two 10-footers for the box pieces and the gable ends.

    1x10 cedar Get one 8-footer for the roof and top pieces.

    5/4x4 cedar Get one 10-footer for the door frame.

    -by-2-inch spiral-cut wood dowels

    1½-inch brad nails

    1¼-inch deck screws

    3-inch deck screws

    -inch brass screws for the door slats

    brass or stainless-steel hinges, latch, shutter pulls, Quick Links, and chain exterior-grade wood glue
