Step 10: Screw the Bed Frame to the Cabinet Doors

Screw the Bed Frame to the Cabinet Doors to build a murphy bed for your dog
Photo: Kolin Smith
«»

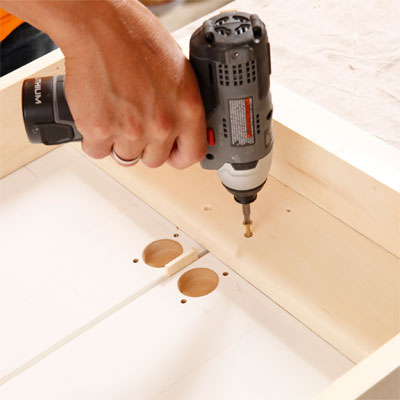

Position the bed frame inside the outline you drew in Step 9. Drill pilot holes through the frame's crosspieces and into the top and bottom rails of the doors, where the wood is thicker. Drive 1-inch screws through the pilot holes to secure the bed frame to the doors. Do not screw the bed frame to the drawer.
Next

Related Content

Ask TOH users about Pets
Discuss

Contribute to This Story Below

Add Comment

    More in Living Spaces

    Tools List

    Close
    • miter saw
      Miter saw
    • circular saw
      Circular saw
    • drill
      Drill/driver
    • pneumatic brad nailer
      Pneumatic nailer
    • multi-bit screwdriver
      Screwdriver
    • putty knife
      Putty knife
    • paintbrushes
      Paintbrushes

    Shopping List

    Close
    1x8 Get an 8-foot length to make the cabinet box top and sides.

    1x4 Get three 8-foot boards make the header, the bedframe, and all the crosspieces.

    ¼-inch plywood Get half of a 4x8 sheet.

    1¼-inch trim-head screws

    Wood glue

    1¼-inch finishing nails

    2½-inch baseboard Get at least 4 feet.

    Shoe molding Get at least 5 feet.

    Cabinet doors Get two.

    Cabinet drawer front Get one.

    ¼ inch shims

    1-inch screws to attach the bed frame to the doors.

    Toy-box hinge Get three.

    Hardware for the doors and drawer

    Magnetic catches to hold the deck upright when the bed is not in use.

    ¾-inch finishing nails to attach the plywood back to the cabinet box.

    Wood filler

    220-grit sandpaper

    Primer

    Semi-Gloss Paint

    Knob and 2-inch threaded pin to make the locking pin
