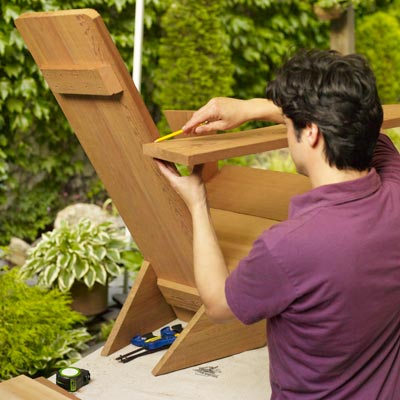

Step 17: Mark the Arms' Positions

attaching the arm rests to a Westport chair
Photo: Wendell T. Webber
«»
Place an arm on top of a front leg, set a torpedo level on the arm, then raise or lower the arm until it's level. Mark the arm's position on the edge of the backrest, as shown. Repeat for the other arm.
Ask TOH users about Furniture

Contribute to This Story Below

    Tools List

    • miter saw
      Sliding compound miter saw to crosscut the boards to length
    • adjustable clamp
      Clamps to hold the parts together during assembly
    • circular saw
      Circular saw to cut the parts to width
    • framing square
      Framing square and combination square for marking cutlines
    • jigsaw
      Jigsaw to cut notches and curves
    • drill
      Drill/driver
    • hand plane
      Hand plane to straighten board edges
    • sandpaper
      120-grit sandpaper
    • sanding block
      Sanding block
    • pencil compass
      Compass
    • torpedo level
      Torpedo level
    • 3-inch wide paint brush
      3-inch paintbrush to apply teak oil

    Shopping List

    ½ x 10 cedar boards.
    Get four 8-foot lengths

    1 -inch stainless-steel trim-head screws

    Teak oil to finish the chair
