Step 8: Mark the Cutlines

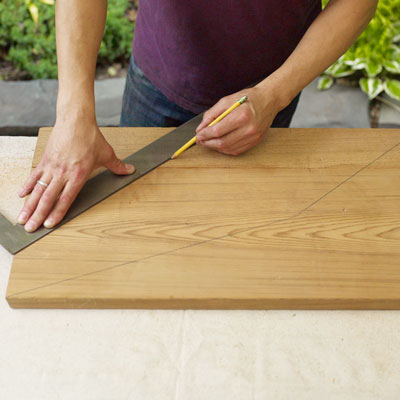

marking angled cut lines for the legs of a Westport chair
Photo: Wendell T. Webber
«»
Following the online parts plan, mark the angled cutlines on each leg blank. The unusual shape produces legs that support the seat at a 21-degree angle to the ground—"the limit of tilting comfort, with absolute safety," according to the W.C. Leonard & Co. furniture catalog, circa 1912.
Ask TOH users about Furniture

Contribute to This Story Below

    Tools List

    • miter saw
      Sliding compound miter saw to crosscut the boards to length
    • adjustable clamp
      Clamps to hold the parts together during assembly
    • circular saw
      Circular saw to cut the parts to width
    • framing square
      Framing square and combination square for marking cutlines
    • jigsaw
      Jigsaw to cut notches and curves
    • drill
      Drill/driver
    • hand plane
      Hand plane to straighten board edges
    • sandpaper
      120-grit sandpaper
    • sanding block
      Sanding block
    • pencil compass
      Compass
    • torpedo level
      Torpedo level
    • 3-inch wide paint brush
      3-inch paintbrush to apply teak oil

    Shopping List

    ½ x 10 cedar boards.
    Get four 8-foot lengths

    1 -inch stainless-steel trim-head screws

    Teak oil to finish the chair
