Step 3: Mark a Notch

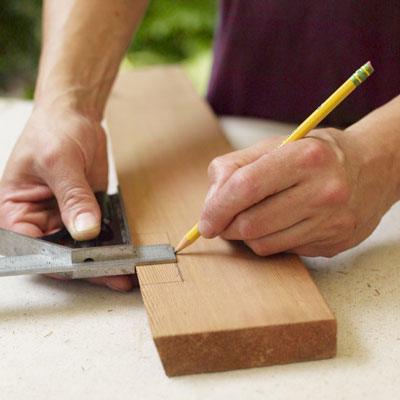

marking the notch for the front leg of a Westport chair
Photo: Wendell T. Webber
«»
Adjust a combination square so that its steel rule protrudes past the head by ⅞ inch—just thinner than a 5/4 board. Use the square to mark a 3-inch-long notch on the beveled front edge of the leg, as shown, 2½ inches from the bottom. The notches will later accept the horizontal front rail.
Next

Related Content

Ask TOH users about Furniture
Discuss

Contribute to This Story Below

Add Comment

    More in Interior

    Tools List

    Close
    • miter saw
      Sliding compound miter saw to crosscut the boards to length
    • adjustable clamp
      Clamps to hold the parts together during assembly
    • circular saw
      Circular saw to cut the parts to width
    • framing square
      Framing square and combination square for marking cutlines
    • jigsaw
      Jigsaw to cut notches and curves
    • drill
      Drill/driver
    • hand plane
      Hand plane to straighten board edges
    • sandpaper
      120-grit sandpaper
    • sanding block
      Sanding block
    • pencil compass
      Compass
    • torpedo level
      Torpedo level
    • 3-inch wide paint brush
      3-inch paintbrush to apply teak oil

    Shopping List

    Close
    ½ x 10 cedar boards.
    Get four 8-foot lengths

    1 ⅝-inch stainless-steel trim-head screws

    Teak oil to finish the chair
