Step 8: Create the Pales

Create the Pales to build a garden gate
Photo: Kolin Smith
«»

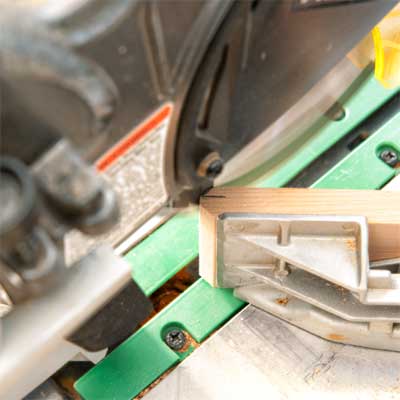

Cut the face bevels. You'll bevel all four sides of the tips to shape the gate's vertical slats, or pales. At the top, make a hash mark ¼ inch in from each edge. Set the miter-saw blade to 45 degrees and place a pale on edge against the fence. Align the blade with the mark and cut the bevel; flip the board and do the same on the opposite edge, as shown. Cut all the pales the same way.
Next

Related Content

Ask TOH users about Fences & Stone Walls
Discuss

Contribute to This Story Below

Add Comment

    More in Yard & Garden

    Tools List

    Close
    • garden stakes
      stakes
    • mason's line
      mason line
    • post hole digger
      posthole digger
    • tarp
      tarp to hold backfill
    • four-foot level
      4-foot level
    • 2-and-a-half-inch paintbrush
      paintbrush
    • circular saw
      circular saw
    • drill
      drill/driver
    • miter saw
      miter saw
    • combination square
      combination square
    • hammer
      hammer
    • caulk gun
      caulk gun

    Shopping List

    Close
    6×6 treated posts Get two.

    self-adhesive flashing

    ¾-inch drainage stone

    fast-setting concrete

    sandpaper

    primer

    5/4×6-inch deck boards to make the frame including the crosspiece, brace, and apron; 2×4s are cheaper but give you a thicker, heavier gate.

    3-inch stainless-steel screws to assemble the frame

    1×6 cedar for the brace1 5/8-inch stainless-steel trim-head screws to attach the pales to the frame

    1×3 cedar for the pales

    1 5/8-inch stainless-steel siding nails to attach the brace paint

    6×6 post caps Get two.

    adhesive caulk to attach the post caps

    reversible strap hinges Choose a size approximately one-third the width of your gate.

    latch hardware and stop
