Step 4: Mark the Crosspiece

Mark the Crosspiece to build a garden gate
Photo: Kolin Smith
«»

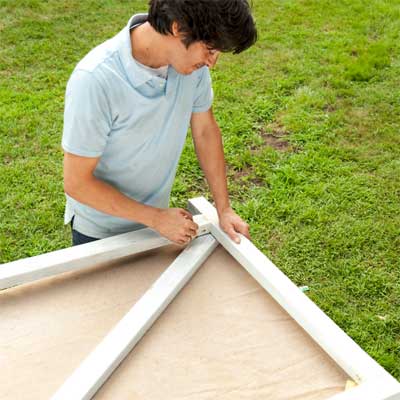

Rip a 2½-inch-wide crosspiece from a 6-foot board and prime it. Mark a centerline at each end of the crosspiece, slip it under the frame running from the latch location to the lower opposite corner, and position the centerlines at the corners. Now simply trace the inside of each corner on the crosspiece, as shown.
Next

Related Content

Ask TOH users about Fences & Stone Walls
Discuss

Contribute to This Story Below

Add Comment

    More in Yard & Garden

    Tools List

    Close
    • garden stakes
      stakes
    • mason's line
      mason line
    • post hole digger
      posthole digger
    • tarp
      tarp to hold backfill
    • four-foot level
      4-foot level
    • 2-and-a-half-inch paintbrush
      paintbrush
    • circular saw
      circular saw
    • drill
      drill/driver
    • miter saw
      miter saw
    • combination square
      combination square
    • hammer
      hammer
    • caulk gun
      caulk gun

    Shopping List

    Close
    6×6 treated posts Get two.

    self-adhesive flashing

    ¾-inch drainage stone

    fast-setting concrete

    sandpaper

    primer

    5/4×6-inch deck boards to make the frame including the crosspiece, brace, and apron; 2×4s are cheaper but give you a thicker, heavier gate.

    3-inch stainless-steel screws to assemble the frame

    1×6 cedar for the brace1 5/8-inch stainless-steel trim-head screws to attach the pales to the frame

    1×3 cedar for the pales

    1 5/8-inch stainless-steel siding nails to attach the brace paint

    6×6 post caps Get two.

    adhesive caulk to attach the post caps

    reversible strap hinges Choose a size approximately one-third the width of your gate.

    latch hardware and stop
