Step 1: Remove the Posts

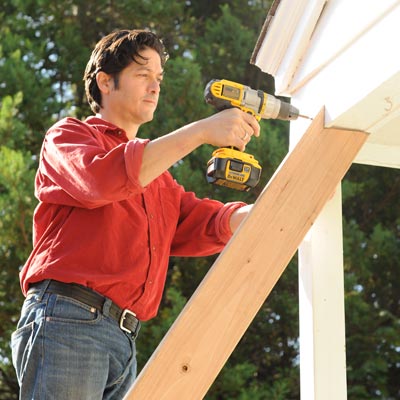

person adding supports to porch awning
Photo: Kolin Smith
«»
For a lightweight awning, simple 2x6s will suffice as supports. First, cut the bottom ends at a 45-degree angle so that they can sit flat on the ground when you run the boards on a diagonal to prop up the awning. Screw a scrap 2x4 beneath each one to act as a foot. Mark a 45-degree cutline on the other end of each board, parallel with the foot, then make another mark perpendicular to that one so that you get a 90-degree notch that will sit against the awning's fascia. Cut the notches with a jigsaw. Prop the boards in place, and secure each one by driving a screw through its front edge and into the awning's fascia. Drive a stake into the ground in front of each footplate to keep it from slipping. Next, outline the post locations on the awning and remove the posts.
Ask TOH users about Porch

Contribute to This Story Below

    Tools List

    • ladder
      ladder
    • drill
      drill/driver
    • plumb bob
      plumb bob
    • combination square
      combination square
    • jigsaw
      jigsaw
    • circular saw
      circular saw to trim posts' height
    • jack post
      jack posts to lift the awning, if post installation requires them

    Shopping List

    1. 2x6 supports: Get two 12-footers

    2. 2x4 scraps to make a footplate for each 2x6 support

    3. Wood stakes to hold 2x6 supports in place

    4. Wood screws to attach 2x6 supports to the awning

    5. Self-tapping concrete screws to attach brackets to the landing
