Step 8: Cut the Frame Pieces

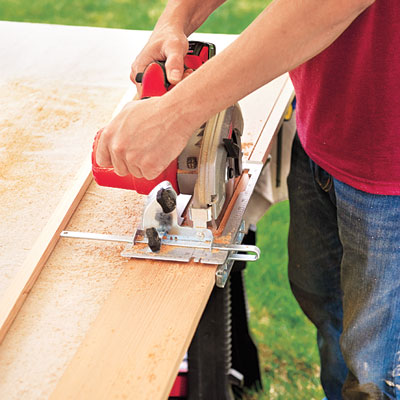

cutting the frame pieces to build the panels
Photo: Kolin Smith
«»
Use a miter saw to cut the 2×4 frame pieces to length. Fit a circular saw with a fence and rip ¾-inch strips from a 1× board, as shown. You'll use these strips as stops to hold the lattice in place. Cut the stops to length: 1½ inches shorter than the frame's side pieces and 3 inches shorter than the top and bottom pieces.
Next

Related Content

Ask TOH users about Fences & Stone Walls
Discuss

Contribute to This Story Below

Add Comment

    More in Yard & Garden

    Tools List

    Close
    • nylon mason's line and stakes
      Mason line and stakes
    • post hole digger
      Posthole digger
    • hand clamps
      Clamps
    • four-foot level
      4-foot level
    • miter saw
      Miter saw
    • pneumatic brad nailer
      Pneumatic brad nail gun
    • circular saw
      Circular saw (fitted with a rip fence)
    • drill
      Drill/driver (fitted with ⅜-inch paddle bit)

    Shopping List

    Close
    1. 4×4 pressure-treated posts
    Get them long enough to go below the frost line; at least one-third of each post must be buried.

    2. Cedar 1×6 lumber
    To be ripped to make the post sleeves, stops, and cap rail.

    3. Cedar square lattice
    Get 4-by-8 sheets that can be cut into two panels each.

    4. Self-adhesive flashing to protect the portion of the post set in concrete.

    5. ¾-inch drainage stone

    6. Concrete
    Choose a fast-setting mix.

    7. 1¼-inch exterior grade brad nails

    8. 1⅝-inch trim-head stainless-steel deck screws

    9. 3-inch stainless-steel deck screws

    10. Polyurethane glue

    11. Polyurethane construction adhesive

    12. Painter's tape

    13. Post caps
    Get 5¼-inch post caps to fit over the sleeved 4×4 posts.
