Step 8: Attach support bolts and fill screw holes

attach bolts and fill holes to build your own porch swing
Photo: Jim Franco
«»

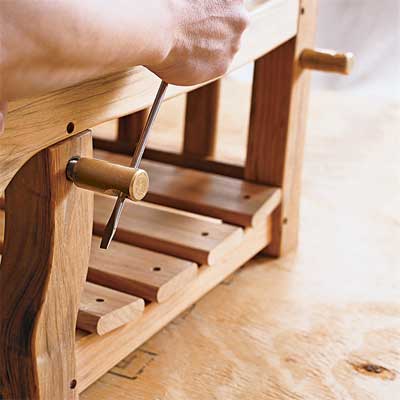

Insert a brass bolt, the head facing inward, through each of the four holes in the side pieces. Apply a thread-locking glue such as Loctite to the bolts and twist on the brass rope nuts. Tighten until the head of the bolt sinks flush with the wood. A screwdriver stuck through the rope hole can provide the necessary leverage. Leave each rope hole facing up. Next, fill each screw hole with a teak plug dabbed with glue. Set the plug with a rawhide mallet, wipe up the glue, then sand it flush with 80-grit sandpaper.
Ask TOH users about Porch

Contribute to This Story Below

    Tools List

    • drill
      Drill/driver
    • bar clamp
      3-foot bar clamps
    • rawhide mallet
      Rawhide mallet
    • Phillips screwdriver
      Screwdriver

    Shopping List

    Swing kit. Similar to shown: Chandler 5' Swing from:
    Arthur Lauer

    Waterproof polyvinyl acetate (PVA) glue

    Thread-locking glue, such as Loctite

    80-grit sandpaper

    120-grit sandpaper

    Teak oilSteel chain or nylon rope to hang the swing. Make sure it's rated to hold the weight of the swing plus 600 pounds. Get enough to reach from the porch ceiling to the swing arms times 4, plus extra for knots.

    ½-inch galvanized eyebolt, 8 inches long, with locknut (for porches without a ceiling) Get two.

    ½-inch by 5½ inch galvanized eyescrew with a shoulder (for porches with a ceiling). Get two.

    S hooks to hang from the eyebolts and prevent squeaking
