Step 6: Mark the Sides' Location

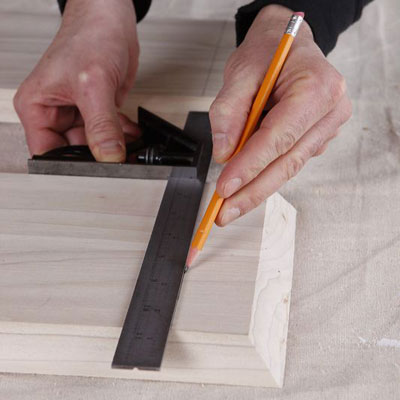

marking the side's location onto the top board with combination square and a pencil
Photo: Ryan Benyi
«»
Abut the top and bottom boards lengthwise. Using a tape measure, locate and mark their midpoint on the larger face, long point to long point. From the center to each side, measure half the distance of the doors' overall width from Step 4. Using a combination square, draw a line at each mark, then transfer it around to the inner face, where the sides will join.
Next

Related Content

Ask TOH users about Cabinets & Shelving
Discuss

Contribute to This Story Below

Add Comment

    More in Interior

    Tools List

    Close
    • circular saw
      Circular saw
    • combination square
      Combination square
    • speed square
      Speed Square
    • miter saw
      Miter saw
    • drill
      Drill/driver
    • Countersink bit
      Countersink bit

    Shopping List

    Close
    1. Bifold door Select a solid-wood bifold door. To determine the width you'll need, add about 4 inches to the width of your monitor and divide by 2. You'll need to round up to the nearest stock door size.

    2. 1x stock Choose boards for the sides wide enough to span from the wall just past the face of the TV, as it protrudes from the wall. For the top and bottom, choose boards at least 2 inches wider than the side boards, to account for the thickness of the doors and the beveled overhang. 3. 1x4s to make the cleat and crosspiece. Get two 6-foot boards.

    4. Bifold door hinges to join the halves of each door once you cut it down. Reuse the three that come with your doors and get one more.

    5. Flush-door H hinges to attach the doors to the frame. Get four.

    6. 1½-inch screws7. Magnet catches made for cabinets. Get two.
