Step 11: Cut the Seat Boards

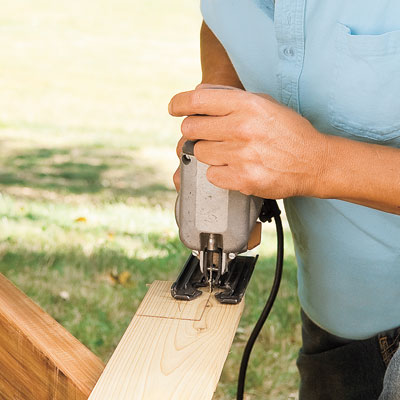

cutting notches into the seat boards
Photo: Kolin Smith
«»
Cut 1x4 and 1x2 seat and backrest boards to size, per the cut list. The first 1x4 board at the front of the seat will extend ½ inch past the front edge of the seat's base and must be notched at the ends to wrap around the front legs. Mark the notch positions, 3¾ inches from each end and 2¼ inches from the board's front edge. Use a jigsaw to cut out the notches.
Next

Related Content

Ask TOH users about Outdoor Structures
Discuss

Contribute to This Story Below

Add Comment

    More in Landscaping

    Tools List

    Close
    • sledge hammer
      sledgehammer
    • miter saw
      miter saw
    • jigsaw
      jigsaw
    • drill
      drill/driver and 1-inch paddle bit
    • caulk gun
      caulk gun
    • four-foot level
      4-foot level
    • hand clamps
      clamps
    • combination square
      combination square
    • flexible curves
      flexible curve to draw profile for rafter tails

    Shopping List

    Close
    All lumber listed is western red cedar.

    2x4s Get twelve 8-foor boards.

    1x4s Get at least four 8-foot boards.

    1x2s Get at least nine 8-foot boards. 2x6s Get three 8-foot boards.

    2x2s Get two 8-foot boards or five 4-foot spindles for the purlins.

    ¼-inch spacers cut from scrap.

    Post anchors Get four.

    Construction adhesive

    Stainless-steel trim-head screws You need three sizes: 1¼ inch, 2⅝ inch, and 3 inch.
