Step 7: Mark and Cut the Windows for the Sides and Back

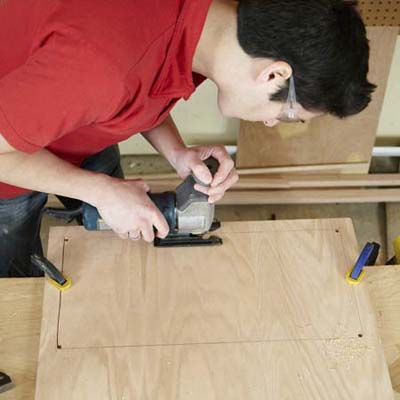

Mark Powers uses a jigsaw to cut out the back window of a dog crate
Photo: Laura Moss
«»
On each side and back panel, draw two horizontal lines, one 1 1/8 inch from the top edge and one 10 inches from the top edge. Then on the side panels, draw vertical lines 1 1/8 inch from the side of each panel to connect the horizontal lines and form a rectangle. On the back panel, draw these vertical lines 1 3/8 inches from each side. Using a drill/driver fitted with a 5/16-inch drill bit, drill a pilot hole at the corner of each rectangle. Clamp each panel over the edge of a work surface, and, starting from the pilot holes, cut out the windows.
Next

Related Content

Ask TOH users about Pets
Discuss

Contribute to This Story Below

Add Comment

    More in Living Spaces

    Tools List

    Close
    • miter saw
      Pneumatic brad nailer
    • pneumatic brad nailer
      Speed Square
    • speed square
      Screwdriver
    • Phillips screwdriver
      Jigsaw fitted with a plywood blade
    • jigsaw
      Miter saw
    • miter saw
      Drill/driver and various bits: 5/16-inch, 3/32-inch, and #6 countersink
    • drill
      24-inch bar clamps
    • bar clamps
      Tin snips or heavy-duty wire-cutters

    Shopping List

    Close
    1. 14-by-14-inch inch reproduction floor heating grate

    2. Decorative cabinet grille Get enough to cover the window cutouts on the side and back panels.

    3. Dog tray for a plastic or metal crate, sized to your dog's weight.

    4. 4-by-4-foot piece of ½-inch oak veneer plywoodfor the crate's sides, back, and top.

    5. 8 feet of 1x2 oak

    6. 6 feet of 1x3 oak

    7. 2 feet of 1x4 oak

    8. 5.2-mm Lauan plywood for the crate's floor.

    9. ¾-inch square dowels to make floor supports and cleats on the back of the face frame.

    10. 3/8-inch square dowels to hold the decorative grille in place.11. 1 5/8-inch oak crown molding and ½-inch oak glass bead molding to trim the top.

    12. Pivot hinges

    13. Latch

    14. 3-inch finish-head screws for the door and face frame.

    15. 1-inch drywall screws to assemble the box and install the decorative grille.

    16. 5/8-inch brad nails to secure all trim pieces.

    17. 1 3/8-inch brad nails to secure cleats, blocking, and crown molding.

    18. Stainable wood filler

    19. Shellac and lint-free rag
