Step 2: Assemble the Doorframe

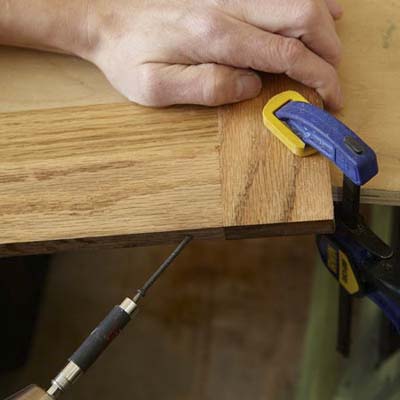

Mark Powers uses a drill/driver to put a pilot hole into the door frame of a dog crate
Photo: Laura Moss
«»
Apply wood glue to the ends of the 1x3 top rail and 1x4 bottom rail. Clamp them between the 1x3 stiles, flush with their ends. At each corner, drill angled pilot holes through the edges of the top and bottom rails and into the stiles. Secure the frame through the pilot holes with 3-inch finish-head screws.
Ask TOH users about Pets

Contribute to This Story Below

    Tools List

    • miter saw
      Pneumatic brad nailer
    • pneumatic brad nailer
      Speed Square
    • speed square
      Screwdriver
    • Phillips screwdriver
      Jigsaw fitted with a plywood blade
    • jigsaw
      Miter saw
    • miter saw
      Drill/driver and various bits: 5/16-inch, 3/32-inch, and #6 countersink
    • drill
      24-inch bar clamps
    • bar clamps
      Tin snips or heavy-duty wire-cutters

    Shopping List

    1. 14-by-14-inch inch reproduction floor heating grate

    2. Decorative cabinet grille Get enough to cover the window cutouts on the side and back panels.

    3. Dog tray for a plastic or metal crate, sized to your dog's weight.

    4. 4-by-4-foot piece of ½-inch oak veneer plywoodfor the crate's sides, back, and top.

    5. 8 feet of 1x2 oak

    6. 6 feet of 1x3 oak

    7. 2 feet of 1x4 oak

    8. 5.2-mm Lauan plywood for the crate's floor.

    9. ¾-inch square dowels to make floor supports and cleats on the back of the face frame.

    10. 3/8-inch square dowels to hold the decorative grille in place.11. 1 5/8-inch oak crown molding and ½-inch oak glass bead molding to trim the top.

    12. Pivot hinges

    13. Latch

    14. 3-inch finish-head screws for the door and face frame.

    15. 1-inch drywall screws to assemble the box and install the decorative grille.

    16. 5/8-inch brad nails to secure all trim pieces.

    17. 1 3/8-inch brad nails to secure cleats, blocking, and crown molding.

    18. Stainable wood filler

    19. Shellac and lint-free rag
