Step 12: Add Insert Nuts to the Crosspieces

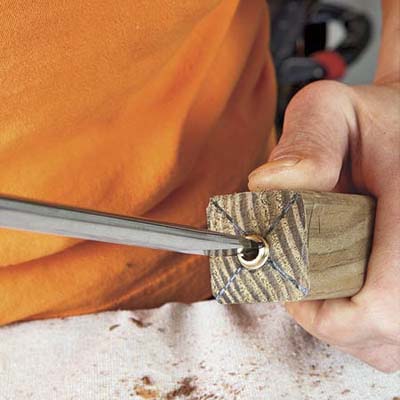

Mark Powers adding insert nuts to the crosspieces of the bar cart
Photo: David Prince
«»
At the ends of each crosspiece, find the center by drawing two lines from corner to corner. Repeat steps 10 and 11 to drill holes and add insert nuts at these spots.
Next

Related Content

Ask TOH users about Outdoor Kitchens
Discuss

Contribute to This Story Below

Add Comment

    More in Kitchen

    Tools List

    Close
    • miter saw
      miter saw
    • jigsaw
      jigsaw to cut handles for the top tray
    • pneumatic brad nailer
      pneumatic brad nail gun with 1 3⁄8-inch brad nails
    • chisel
      wood chisel to clean up notch cuts
    • drill
      drill/driver with various bits: ¼ inch, 5⁄16 inch, 3⁄8 inch, combination countersink, and 1-inch paddle
    • flathead screwdriver
      large flathead screwdriver
    • hex keys
      hex key sized to the hex-head connector bolts
    • sandpaper
      120-grit sandpaper and block wood file

    Shopping List

    Close
    1. 1x2 cedar for the cart's legs and the ledges for the trays. Buy 22 feet.

    2. 1x3 cedar for the trays and bottle rack. Buy 30 feet.

    3. 1x4 cedar for the tall sides of the top tray and bottle rack. Buy 6 feet.

    4. 2x deck pickets of cedar or treated lumber to make the crosspieces that support the removable top tray.

    5. paint can to trace the shape of the handles for the top tray.6. wood glue

    7. 1-inch hardwood dowel

    8. ½-inch-long brass insert nuts, ¼-20 size

    9. 40-millimeter-long hex-head connector bolts, ¼-20 size

    10. 1½ inch stainless-steel screws

    11. 5⁄8-inch aluminum screw posts

    12. set of two 9-inch wheels with axle, cotter pins, and axle caps.
