Step 14: Assemble the Base

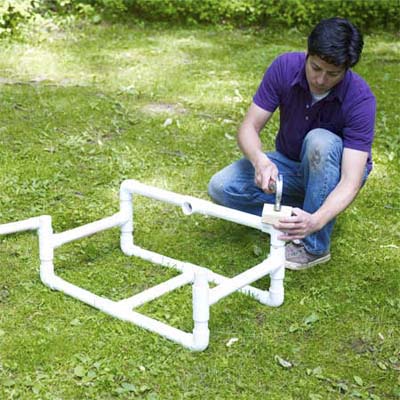

fitting together the teeter-totter base
Photo: Wendell T. Webber
«»
Make the teeter-totter base by creating two box-shaped sides connected by crosspieces. To build the bottom of the first side, push together an elbow, a 19-inch pipe, a tee, another 19-inch pipe, and another elbow. Repeat to build the top. Connect the top and bottom by inserting a 3¼-inch pipe, a tee, and another 3¼-inch pipe between the elbow at each end of the top and bottom. Build a second side, and install 14½-inch pipes between the tees in the center of the bottom and sides of the frame sides. Set the frame fittings using a block and a hammer, but do not tighten the top crosspiece and one corner. Wrap stripes of yellow tape around the base to make it easier for your dog to see.
Ask TOH users about Pets

Contribute to This Story Below

    Tools List

    • pvc saw
      Pull Saw
    • drill
      Drill/Driver
      with 1/16-inch bit, 3/8-inch bit, 5/8-inch paddle bit
    • combination square
      Combination Square
    • hammer
      Hammer
    • block wood
      Wood Block

    Shopping List

    1 ½-inch schedule 40 PVC pipe. Get 100 feet.

    1 ½-inch PVC tees. Get 22.

    1 ½-inch PVC elbows. Get 10.

    1 ½-inch PVC end caps. Get 16.

    2-inch PVC. Get 12 inches.

    1x12 laminated shelving board. Get one 8-foot board

    2-inch U-strap. Get two.

    1½-inch 3/8-inch flathead bolts. Get four.

    3/8-inch washers. Get 16.

    3/8-inch locknuts. Get four.3/4-inch metal strapping

    3/4-inch sheet metal screws

    1-inch drywall screws

    Clear PVC cleaner

    Electrical tape in red, blue, and yellow

    Painter's tape

    Exterior primer

    Exterior flat paint in yellow

    Antiskid additive

    3 pounds of gravel
