Step 10: Drill for the Center Spin Pipe

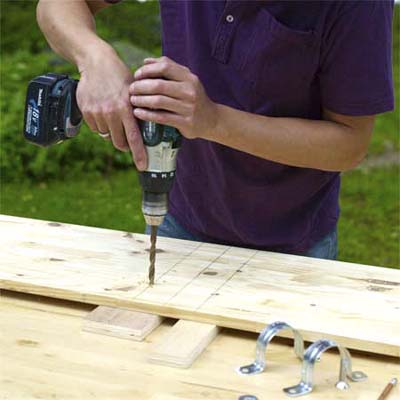

drilling the holes in the teeter-totter
Photo: Wendell T. Webber
«»
Dry-fit the holes of a 2-inch strap on the crosshairs. To create space for the head of the bolt to sit flush with the top of the plank, remove the strap and drill one-quarter the depth of each hole using a drill/driver fitted with a 5/8-inch paddle bit. Drill the rest of each hole with a 3/8-inch bit.
Next
Ask TOH users about Pets
Discuss

Contribute to This Story Below

Add Comment

    More in Living Spaces

    Tools List

    Close
    • pvc saw
      Pull Saw
    • drill
      Drill/Driver
      with 1/16-inch bit, 3/8-inch bit, 5/8-inch paddle bit
    • combination square
      Combination Square
    • hammer
      Hammer
    • block wood
      Wood Block

    Shopping List

    Close
    1 ½-inch schedule 40 PVC pipe. Get 100 feet.

    1 ½-inch PVC tees. Get 22.

    1 ½-inch PVC elbows. Get 10.

    1 ½-inch PVC end caps. Get 16.

    2-inch PVC. Get 12 inches.

    1x12 laminated shelving board. Get one 8-foot board

    2-inch U-strap. Get two.

    1½-inch 3/8-inch flathead bolts. Get four.

    3/8-inch washers. Get 16.

    3/8-inch locknuts. Get four.3/4-inch metal strapping

    3/4-inch sheet metal screws

    1-inch drywall screws

    Clear PVC cleaner

    Electrical tape in red, blue, and yellow

    Painter's tape

    Exterior primer

    Exterior flat paint in yellow

    Antiskid additive

    3 pounds of gravel
