Step 7: Add End Supports

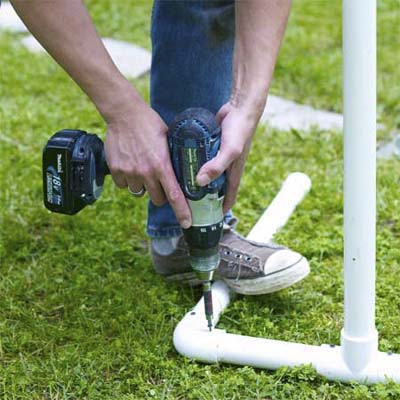

mark powers using drill to attach feet at ends of weave bars
Photo: Wendell T. Webber
«»
Straighten the polls vertically while pushing the legs at either end to opposite sides of the polls to create a large Z shape. When the weave polls are straight up and down, drill and sink a set screw through both ends of each elbow on either end of the polls. Wrap two strips of blue tape at the top and bottom of each weave poll and one strip in the center.
Ask TOH users about Pets

Contribute to This Story Below

    Tools List

    • pvc saw
      Pull Saw
    • drill
      Drill/Driver
      with 1/16-inch bit, 3/8-inch bit, 5/8-inch paddle bit
    • combination square
      Combination Square
    • hammer
      Hammer
    • block wood
      Wood Block

    Shopping List

    1 ½-inch schedule 40 PVC pipe. Get 100 feet.

    1 ½-inch PVC tees. Get 22.

    1 ½-inch PVC elbows. Get 10.

    1 ½-inch PVC end caps. Get 16.

    2-inch PVC. Get 12 inches.

    1x12 laminated shelving board. Get one 8-foot board

    2-inch U-strap. Get two.

    1½-inch 3/8-inch flathead bolts. Get four.

    3/8-inch washers. Get 16.

    3/8-inch locknuts. Get four.3/4-inch metal strapping

    3/4-inch sheet metal screws

    1-inch drywall screws

    Clear PVC cleaner

    Electrical tape in red, blue, and yellow

    Painter's tape

    Exterior primer

    Exterior flat paint in yellow

    Antiskid additive

    3 pounds of gravel
