Step 6: Align the Poles

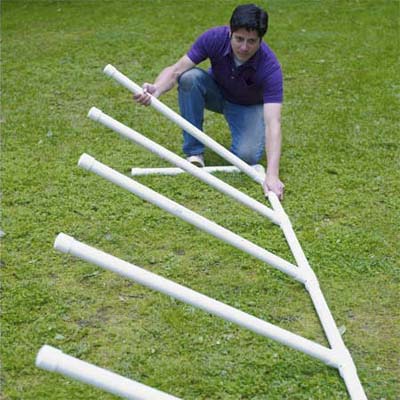

mark powers standing a length of weave bars on end
Photo: Wendell T. Webber
«»
Attach the tee-pipe pairs to create one long line. Insert a 12-inch pipe into the tees on either end of the run and fit each with an elbow, a 24-inch pipe, and an end cap. Insert a 40-inch pipe fitted with an end cap into each of the six tees. Lay the entire row on its side on a flat surface to keep all the tee outlets parallel. Mark a line that crosses in between each tee and pipe between the uprights so that you can keep them lined up the right way when you put the screw in. Using a drill/driver, drill a hole at each connection, making sure the mark stays aligned. Secure these connections with 1-inch set screws.
Ask TOH users about Pets

Contribute to This Story Below

    Tools List

    • pvc saw
      Pull Saw
    • drill
      Drill/Driver
      with 1/16-inch bit, 3/8-inch bit, 5/8-inch paddle bit
    • combination square
      Combination Square
    • hammer
      Hammer
    • block wood
      Wood Block

    Shopping List

    1 ½-inch schedule 40 PVC pipe. Get 100 feet.

    1 ½-inch PVC tees. Get 22.

    1 ½-inch PVC elbows. Get 10.

    1 ½-inch PVC end caps. Get 16.

    2-inch PVC. Get 12 inches.

    1x12 laminated shelving board. Get one 8-foot board

    2-inch U-strap. Get two.

    1½-inch 3/8-inch flathead bolts. Get four.

    3/8-inch washers. Get 16.

    3/8-inch locknuts. Get four.3/4-inch metal strapping

    3/4-inch sheet metal screws

    1-inch drywall screws

    Clear PVC cleaner

    Electrical tape in red, blue, and yellow

    Painter's tape

    Exterior primer

    Exterior flat paint in yellow

    Antiskid additive

    3 pounds of gravel
