Step 10: Cut the Caps

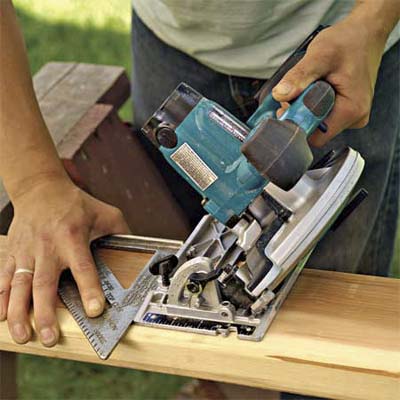

cut the caps
Photo: Kolin Smith
«»
To give the trellis a finished profile, cap the panels with overhanging 2x6s that have angle cuts at the ends.

Using a circular saw with the blade set at a 45-degree angle, cut a 2x6 to the length of the center panel plus 10 inches. Cut 2x6s to the lengths of the side panels plus 5 inches, making an angled cut at one end of each piece but a straight cut at the other end.
Ask TOH users about Gardening

Contribute to This Story Below

    Tools List

    • circular saw
      circular saw
    • speed square
      Speed square
    • straightedge guide
      straightedge
    • combination square
      combination square
    • chisel
      chisel
    • hand saw
      handsaw
    • drill
      drill/driver
    • two-foot level
      2-foot level
    • post hole digger
      posthole digger
    • 7 foot digging bar
      digging bar
    • pointed shovel
      shovel
    • tamper
      small hand tamper

    Shopping List

    1. Cedar or pressure-treated 2x4s for the frame. Keep in mind that two adjoining trellis panels will share one vertical frame piece.

    2. Cedar or pressure-treated 1x1s for the stops that hold the lattice.3. Cedar or pressure-treated lattice fencing comes in 4-by-8-foot sheets. If you're building more than one panel, get both straight and diagonal lattice. 4. Cedar or pressure-treated 2x6—to cap the tops of the panels.

    5. ¾-inch gravel for drainage in the postholes. Four 50-pound bags will be enough.

    6. 1 5/8-inch self-tapping deck screws

    7. 3-inch self-tapping deck screws
