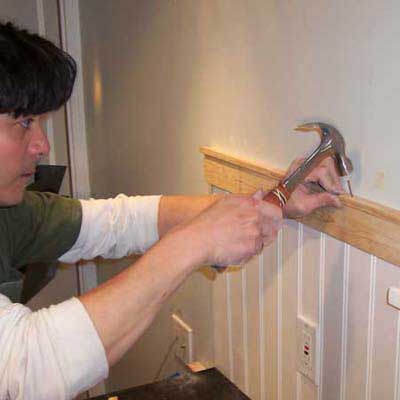

Step 9: Attach the Trim

attach the trim
Photo: William P. Fuller
«»
Cut a strip of lattice to fit against the vertical edge of the panel left exposed. Apply a bead of adhesive caulk to the edge and stick the strip in place, laid flat. Face-nail the lattice strip to the wall with a 1½-inch finish nail.

Cut a strip of 1x3-inch pine to the length, plus 1/4 inch, of the top edge of the surface to be capped—including the side trim.

Lay a bead of adhesive caulk across the top edge of the solid backsplash surface. Stick the strip in place and face-nail it to the wall with finish nails.

Finally, cut a strip of lattice to the length of the 1x3 strip, plus 1/4 inch. Position the lattice on edge, above the 1x3 strip. Nail it in place with finish nails angled through the top of the lattice into the 1x3.

Set the nails below the surface of the wood. Prime and paint the trim to match the backsplash.
Ask TOH users about Backsplashes

Contribute to This Story Below

    Tools List

    • hot glue gun
      Hot Glue Gun

    • four-foot level
      4-Foot Level

    • circular saw
      Circlar Saw

    • jigsaw
      Jigsaw fitted with metal cutting blade

    • drill
      Drill/Driver fitted with with 3/8-inch masonry drill bit

    • utility knife
      Utility Knife

    • caulk gun
      Caulk Gun

    • hammer with nailset
      Hammer and Nail Set

    Shopping List

    1. Solid-Surface Wall Paneling. Look for 1/4-inch-thick material, available in large sheets at home centers or through distributors. Get the widest sheets you can find to minimize joints.

    2. All Purpose Kitchen Cleaner, such as Formula 409 or Fantastik, to clean grease off the wall and prepare it for adhesive.

    3. 1/4-Inch Plywood, aka luaun, to make the template.

    4. Painter's Tape

    5. Construction Adhesive to adhere the backsplash to the wall.

    6. Tack Cloth

    7. Heavy-Duty Double-Stick Tape to hold the panel in place while the adhesive sets.

    8. All-Purpose Caulk to seal seams between panels and against cabinets. Get a color to match the solid-surface material, or else use clear.

    9. 1x3 Pine Lumber to cap any exposed edges.

    10. 1 1/2-Inch Finish Nails

    11. Paint to coat any molding detail to match the backsplash material.
