Step 6: Hang the framed-lattice panels

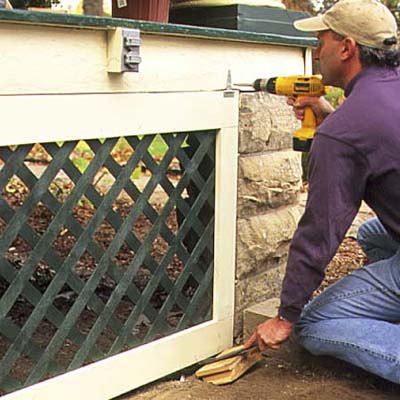

Hang the framed-lattice panels
Photo: Chip Henderson
«»
Hang the framed-lattice panels from the porch with either 3- or 4-inch strap or T-hinges. Two hinges are sufficient for a panel that's shorter than 8 feet, but use three hinges on one that's longer. Screw the hinges to the frames first, then set the panels in the openings under the porch. Slip a pry bar under the panel and raise it up tight against the porch fascia. Use a drill/driver to screw the hinge to the porch.

Check to make sure the panel swings up and down smoothly. If it drags on the ground, use a shovel or rake to remove some dirt from in front of the panel. If there's a large gap beneath the panel, add soil, then smooth it out to create a consistent space between the panel and ground.
Ask TOH users about Porch

Contribute to This Story Below

    Tools List

    • 16-foot tape measure
      Tape measure
    • hammer
      Hammer
    • drill
      Drill/driver
    • flat prybar
      Pry bar, used to remove old wood lattice, and to install new lattice panels
    • circular saw
      Circular saw or sabre saw, used to cut lumber and lattice panels
    • hand hoe
      Rake or garden hoe, used to level soil directly under lattice panels

    Shopping List

    1. VINYL LATTICE

    2. PRESSURE-TREATED 1x6s

    for making the perimeter frames of lattice panels



    3. PRESSURE-TREATED 1x4s

    for making the perimeter frames of lattice panels



    4. 6-INCH METAL MENDING PLATE

    for reinforcing the frames’ corner joints



    5. 3½-INCH METAL CORNER BRACE

    for reinforcing the frames’ corner joints



    6. 4-INCH METAL T-PLATE

    for attaching the center stiles to the frames



    7. ½-INCH FLATHEAD SCREWS

    used to attach the metal fastening hardware



    8. EXTERIOR-GRADE PRIMER AND PAINT

    for finishing the lattice frames



    9. 1-INCH PANHEAD SCREWS AND WASHERS

    used to attach the lattice to the frames



    10. 3- OR 4-INCH STRAP HINGES OR T-HINGES

    for fastening the lattice panels to the porch
