Step 6: Insert adapter and reducer

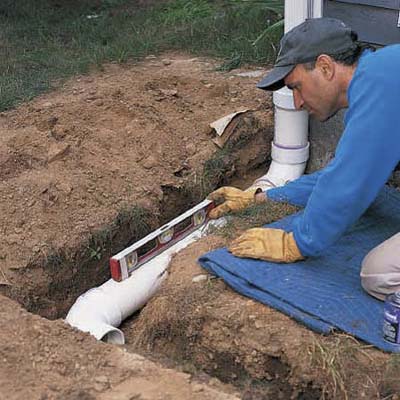

Insert the downspout adapter and reducer
Photo: Smith-Baer
«»
Gently insert the downspout adapter and reducer assembly into the pipe protruding from the elbow after slipping the adapter onto the downspout; don't glue this joint. Then proceed down the trench to the first turn, lay in a 90-degree elbow and cut a length of pipe to fit between it and the assembly at the downspout. Glue the parts together, then check with a level to make sure the pipe slopes down slightly.
Next

Related Content

Ask TOH users about Drainage & Gutters
Discuss

Contribute to This Story Below

Add Comment

    More in House Exterior

    Tools List

    Close
    • 16-foot tape measure
      Tape measure
    • flat blade shovel
      Shovel, used to dig trench
    • two-foot level
      Level, used to check drainpipe for proper slope
    • sledge hammer
      Small sledgehammer, used to pound in stakes
    • hand saw
      Handsaw, hacksaw or 12-inch power miter saw, used to cut the PVC pipe

    Shopping List

    Close
    1. 4-INCH-DIAMETER PVC AND ASSORTED FITTINGS

    2. 4-INCH-DIAMETER FLEXIBLE PLASTIC DRAIN PIPE

    3. PVC PRIMER AND CEMENT

    used to join together PVC pipe and fittings



    4. WOODEN STAKES AND MASON'S STRING

    5. WHITE FLOUR IN METAL CAN

    sprinkled onto ground to indicate trench location



    6. CARDBOARD SHEETS

    used to temporarily hold soil dug from trench
